The MIC5205-3.6YM5 is a low dropout (LDO) voltage regulator manufactured by Micrel (now part of Microchip Technology). It is designed to provide a stable and regulated 3.6V output voltage from a higher input voltage, with minimal voltage drop. This regulator is commonly used in battery-powered devices and other applications where efficiency and low noise are critical.

Applications:

• Battery-powered devices
• Portable electronics
• Post-regulation for switching power supplies
• Microcontroller power supplies
• Noise-sensitive applications

Features:

• Low dropout voltage: Operates with minimal voltage difference between input and output.
• Low quiescent current: Minimizes power consumption in standby mode.
• High accuracy: Provides a stable and precise output voltage.
• Short-circuit protection: Protects the regulator and the load from damage.
• Over-temperature protection: Prevents thermal damage to the regulator.
• Small package size: Enables compact designs.

Benefits:

• Extended battery life: Low quiescent current reduces energy drain.
• Stable output voltage: Provides a reliable power supply for sensitive components.
• Enhanced system reliability: Protection features prevent damage from faults.
• Compact design: Saves valuable board space.

Additional Details:

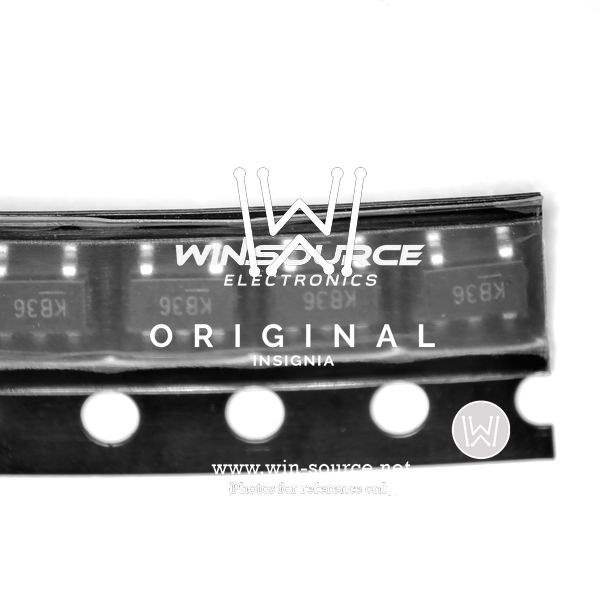

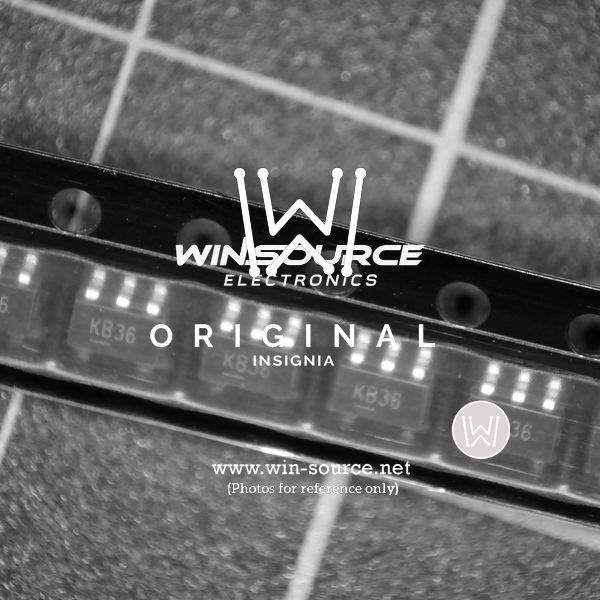

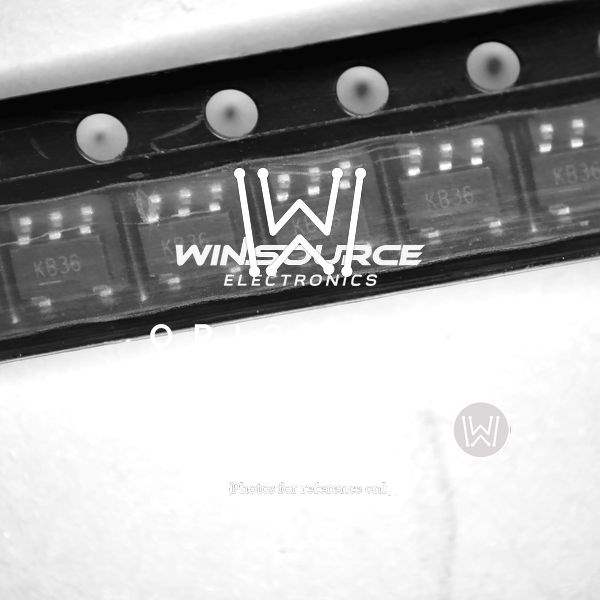

The MIC5205-3.6YM5 regulator is available in a small SOT-23-5 package. It typically requires only a few external components for operation. Detailed specifications, including input voltage range, output voltage accuracy, dropout voltage, and thermal resistance, can be found in the product datasheet provided by Microchip Technology.
