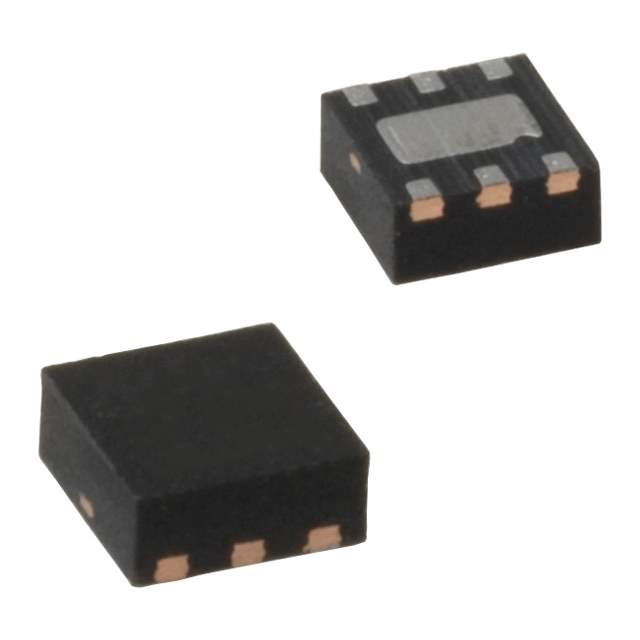

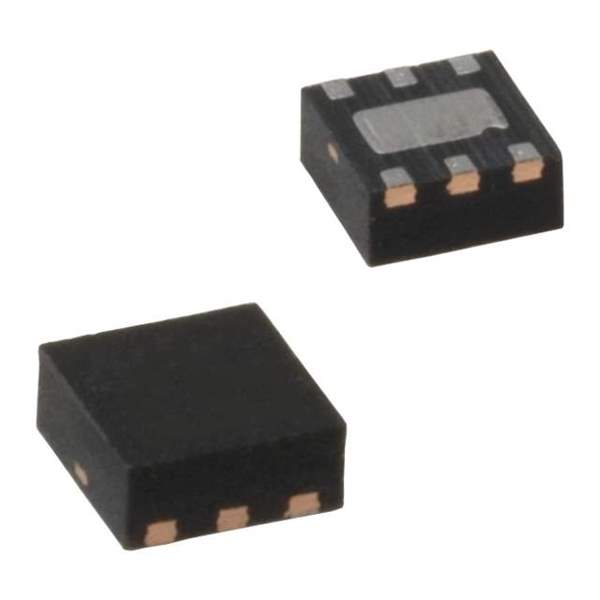

The MIC5309-1.2YMT is a high-performance, low-dropout (LDO) regulator from Micrel, now Microchip Technology. This regulator is designed to provide a stable and accurate 1.2V output voltage with a minimal dropout voltage, making it suitable for various portable and battery-powered applications. It offers excellent transient response and low noise, ensuring reliable power delivery to sensitive electronic components.

Applications:

• Mobile phones and smartphones: Powering core logic and memory.
• Tablets and portable media players: Regulating voltage for displays and processors.
• Digital cameras and camcorders: Providing clean power to image sensors and processing units.
• Wireless communication devices: Powering RF transceivers and baseband processors.
• Battery-powered devices: Extending battery life through efficient regulation.

Features:

• Low Dropout Voltage: Ensures regulation even with a small difference between input and output voltage.
• High Output Accuracy: Provides a stable and precise 1.2V output.
• Low Quiescent Current: Minimizes power consumption in standby mode.
• Stable with Ceramic Capacitors: Designed to operate with small ceramic output capacitors.
• Overcurrent and Overtemperature Protection: Protects the regulator and connected components from damage.
• Enable/Disable Control: Allows for power saving by shutting down the regulator when not needed.

Benefits:

• Extended Battery Life: Low quiescent current minimizes battery drain in portable applications.
• Improved System Performance: Stable and accurate voltage regulation ensures optimal performance of powered components.
• Simplified Design: Stable operation with ceramic capacitors reduces the need for bulky external components.
• Enhanced Reliability: Overcurrent and overtemperature protection features prevent damage and extend product lifespan.
• Reduced Board Space: Small package size allows for compact designs.

The MIC5309-1.2YMT operates over a wide input voltage range, typically from 2.5V to 5.5V. It is available in a small, thermally efficient package. The regulator is stable with output capacitors as low as 1µF, making it easy to implement in space-constrained applications. Its low dropout voltage allows it to operate efficiently even when the input voltage is close to the output voltage. The overcurrent and overtemperature protection features ensure robust operation under various fault conditions.
