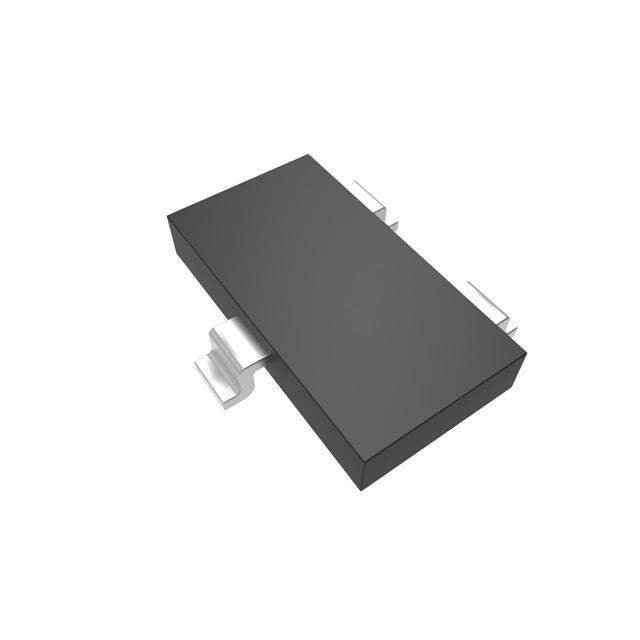

BAT54CT-TP Real Image
Same model may have multiple batches, images only for reference.

BAT54CT-TP

Part No BAT54CT-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT523
Datasheet
BAT54CT-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2μA @ 25V
Operating Temperature - Junction -65°C to 125°C
Mounting SMD (SMT)
Case / Package SOT-523
Win Source Part Number 1022171-BAT54CT-TP
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian BAT54CT-TP CAD Model

Description

The BAT54CT-TP is a discrete semiconductor product manufactured by Micro Commercial Co.

  • Diode Type: Schottky
  • Voltage DC Reverse: 30V
  • Current Average Rectified: 200mA
  • Diode Configuration: 1 pair common cathode
  • Operating Temperature Junction: -65 degrees Celsius to 125 degrees Celsius
