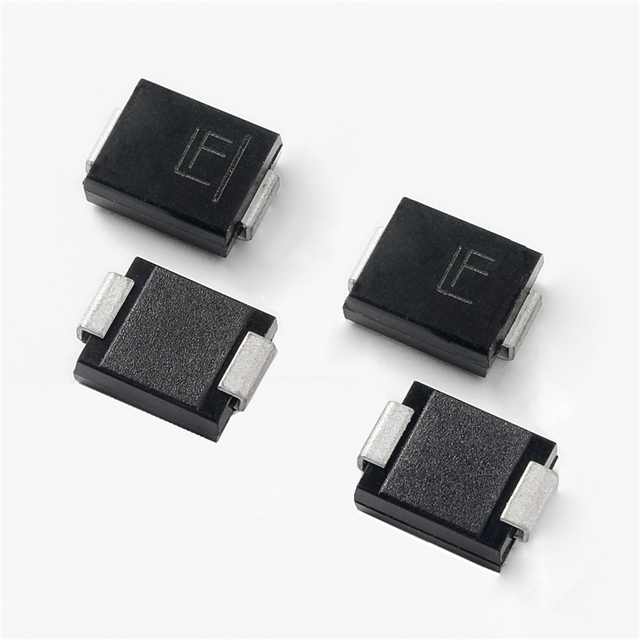

Same model may have multiple batches, images only for reference.

3.0SMCJ18CA

Name: 3.0SMCJ18CA
Brand: SMC Diode Solutions
SKU: 1037886
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3.0SMCJ18CA
Manufacturer	SMC Diode Solutions
Catalog	TVS - Diodes
Description	TVS DIODE 18VWM 29.2VC SMC / 29.2V Clamp 102.8A Ipp Tvs Diode Surface Mount SMC (DO-214AB)
Datasheet	3.0SMCJ18CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	SMC Diode Solutions
Package	Tape & Reel (TR)
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	18V
Voltage - Breakdown (Min)	20V
Voltage - Clamping (Max) @ Ipp	29.2V
Current - Peak Pulse (10/1000µs)	102.8A
Power - Peak Pulse	3000W (3kW)
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Package / Case	DO-214AB, SMC
Supplier Device Package	SMC (DO-214AB)
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	3.0SMCJ18CATR,3.0SMCJ18CATRSMC-ND,1655-3.0SMCJ18CATR,3.0SMCJ18CATRSMC
Standard Package	3,000
Win Source Part Number	1037886-3.0SMCJ18CA
Ultra Librarian 3D Model	Ultra Librarian 3.0SMCJ18CA CAD Model

Alternative Products

Description

The SMC Diode Solutions presents a high-quality TVS-Diodes electronic component.

Win Source Part Number: 1037886-3.0SMCJ18CA
Voltage: 18V
Breakdown Voltage: 20V
Power Peak Pulse: 3000W
Maximum Clamping Voltage @ Ipp: 29.2V
Standard Package: 3,000 units
Operating Temperature: -55°C to 150°C
Application: General-purpose electronic applications
