The BAV99-TP is a diode rectifier array designed for various electronic applications manufactured by Micro Commercial Co.

• Package: tape & reel
• Standard package: 3,000
• Mounting: surface mountable
• Diode type: standard
• Voltage - DC reverse (Vr) (Max): 70 V
• Voltage - forward (Vf) (Max) @ If: 1.25 V @ 150 mA
• Reverse recovery time (trr): 6 ns
• Current - reverse leakage @ Vr: 2.5 µA @ 75 V
• Operating temperature range: -55°C to 150°C
• Diode configuration: 1 pair series connection

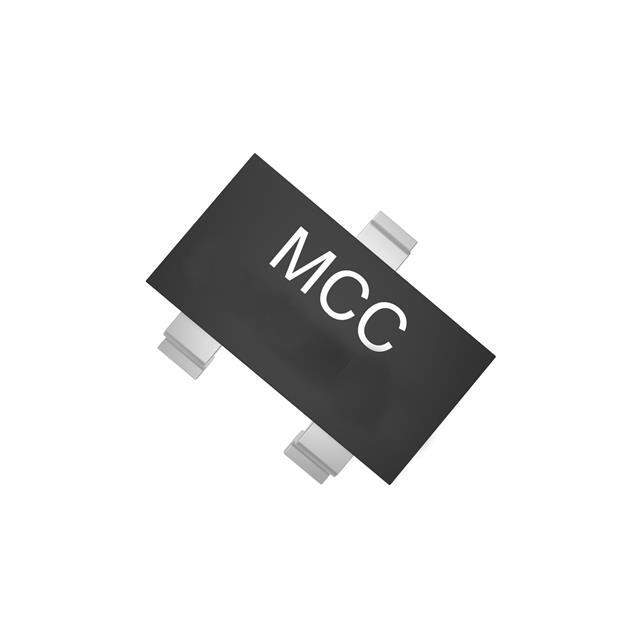

• Package/case: TO-236-3, SC-59, SOT-23-3
• Supplier device package: SOT-23
