Same model may have multiple batches, images only for reference.

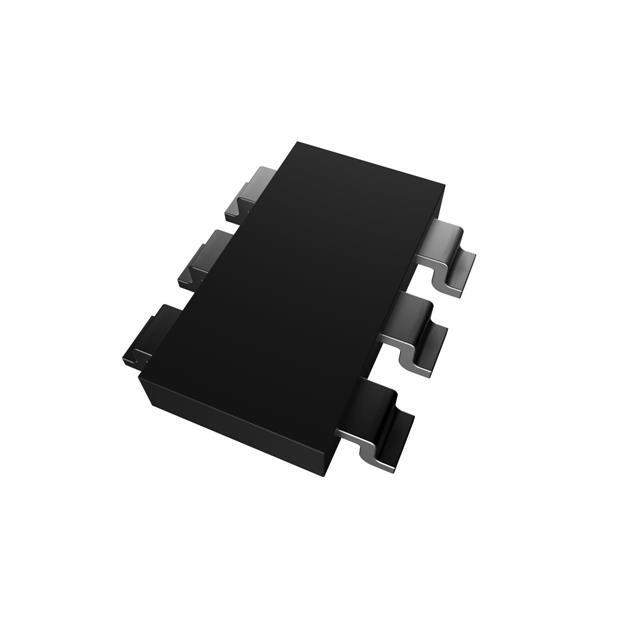

BAV99DW-TP Real Image
Same model may have multiple batches, images only for reference.

BAV99DW-TP

Part No BAV99DW-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 75V 150MA SOT363
Datasheet
BAV99DW-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 23 Weeks
Features Diode Array 2 Pair Series Connection Standard 75 V 150mA Surface Mount 6-TSSOP, SC-88, SOT-363
Manufacturer Micro Commercial Co
Package Reel - TR
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Surface Mount
Package 6-TSSOP, SC-88, SOT-363
Case / Package SOT-363
Family Name BAV99
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number BAV99DW-TPTR, BAV99DWTP, BAV99DW-TPDKR, BAV99DW-TPCT
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 863531-BAV99DW-TP
Ultra Librarian 3D Model Ultra Librarian BAV99DW-TP CAD Model

Description

The Micro Commercial Co BAV99DW-TP is a diode array with 2 pair series connection standard, a voltage rating of 75V and a maximum current of 150mA.

  • Manufacturer: Micro Commercial Co
  • Product: BAV99DW-TP
  • Diode Array: 2 pair series connection standard
  • Voltage Rating: 75V
  • Maximum Current: 150mA
  • Mounting Type: Surface Mount
  • Package: 6-TSSOP, SC-88, SOT-363
  • Speed: =< 200mA (Io), any speed
  • Tolerance: ±5%
  • Packaging: Reel - TR
  • Package Contains: 3000 pcs
  • Estimated Production Lead Time: 23 weeks
