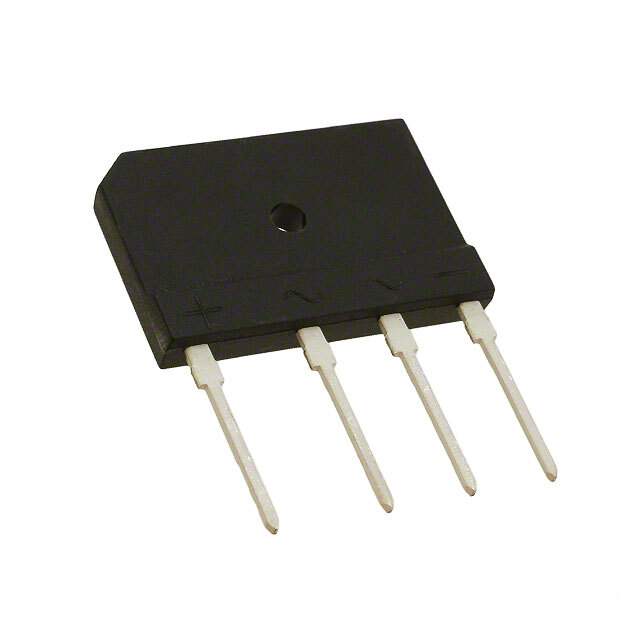

GBJ1506-BP Real Image
Same model may have multiple batches, images only for reference.

GBJ1506-BP

Part No GBJ1506-BP
Manufacturer Micro Commercial Co
Catalog Bridge Rectifiers
Description RECT BRIDGE GPP 15A 600V GBJ
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 1.05V @ 7.5A
Current - Reverse Leakage @ Vr 10μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBJ
Win Source Part Number 145184-GBJ1506-BP
Popularity Medium
Supply and Demand Status Limited
Quantity per package 750
Ultra Librarian 3D Model Ultra Librarian GBJ1506-BP CAD Model

Description

The Micro Commercial Co 145184-GBJ1506-BP is a single-phase diode used in various electronic devices.

  • Current-Average Rectified (Io): 15A
  • Voltage-Forward (Vf): 1.05V @ 7.5A
  • Current-Reverse Leakage @ Vr: 10μA @ 600V
  • Voltage-Peak Reverse (Max): 600V
  • Packaging: Tube/Rail
  • Mounting: Through-Hole
  • Technology: Standard
  • Quantity per Package: 750
