Product Overview: BZT52HC3V0WF-7 from Diodes Incorporated

The BZT52HC3V0WF-7 is a high-performance Zener diode from Diodes Incorporated, designed for applications requiring a precise voltage regulation in a small footprint. This surface-mount device is part of the BZT52 series, which is renowned for its reliability and efficiency in voltage clamping and reference applications.

Key Features

• Precise Voltage Regulation: With a nominal Zener voltage of 3.0V, it offers tight voltage regulation, making it suitable for precision applications.
• Low Leakage Current: The device has a very low leakage current, ensuring minimal power loss and improved efficiency in the circuit.
• Power Dissipation: Capable of dissipating up to 200mW of power, it can handle moderate levels of power without compromising performance.

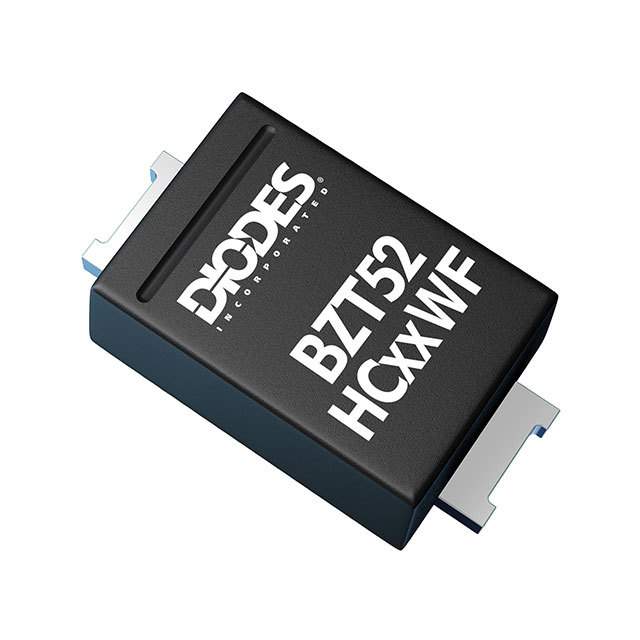

• Compact Package: Packaged in a small SOD-123F flat package, the BZT52HC3V0WF-7 is ideal for space-constrained applications.
• Wide Operating Temperature Range: It can operate over a broad temperature range from -55°C to +150°C, suitable for harsh environments.

Applications

The BZT52HC3V0WF-7 is versatile and can be used in a wide range of applications, including but not limited to:

• Power Supply Regulation
• Consumer Electronics
• Portable Devices
• Telecommunication Systems
• Industrial Equipment

Quality and Reliability

Diodes Incorporated is committed to delivering high-quality products. The BZT52HC3V0WF-7 is manufactured with stringent quality control processes, ensuring high reliability and performance consistency. It also meets the requirements of the RoHS directive, making it an environmentally friendly choice for designers and manufacturers concerned with reducing hazardous substances in electronic products.

Conclusion

Whether you are designing a sophisticated industrial system or a simple consumer electronic device, the BZT52HC3V0WF-7 Zener diode from Diodes Incorporated provides a reliable and efficient solution for voltage regulation needs. Its compact design, precise voltage control, and robustness in various conditions make it an excellent choice for a wide array of electronic applications.
