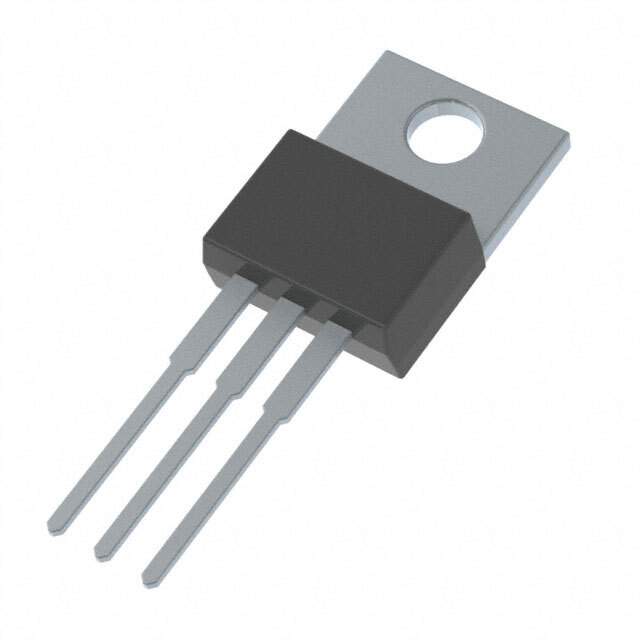

MC7805CT-BP Real Image
Same model may have multiple batches, images only for reference.

MC7805CT-BP

Part No MC7805CT-BP
Manufacturer Micro Commercial Co
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 5V 1.5A TO220  /  Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-220AB
Datasheet
MC7805CT-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Micro Commercial Co
Package Tube
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 35V
Voltage - Output (Min/Fixed) 5V
Voltage Dropout (Max) 2V @ 1A (Typ)
Current - Output 1.5A
Current - Quiescent (Iq) 8 mA
PSRR 73dB (120Hz)
Protection Features Over Temperature, Short Circuit
Temperature Range - Operating 0°C ~ 125°C
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220AB
Base Product Number MC7805
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names MC7805CT-BPMS,MC7805CTBP
Standard Package 5,000
Win Source Part Number 1223944-MC7805CT-BP
Ultra Librarian 3D Model Ultra Librarian MC7805CT-BP CAD Model

Description

The MC7805CT-BP is an integrated circuit manufactured by Micro Commercial Co.

  • Features: Over-temperature and short-circuit protection.
  • Applications: Commonly used in voltage regulator applications.
  • Description: With its high-quality features, it can provide you with excellent voltage regulation.
