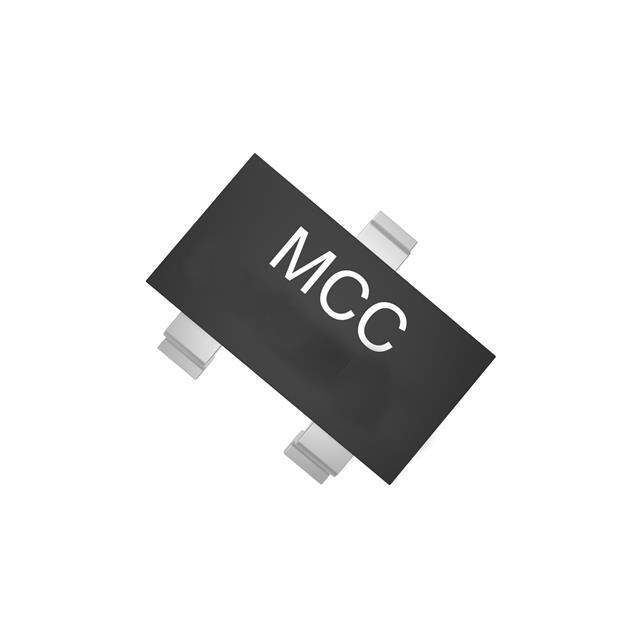

MMBD1503-TP Real Image
Same model may have multiple batches, images only for reference.

MMBD1503-TP

Part No MMBD1503-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description Rectifier Diode Switching 180V 0.6A 3-Pin SOT-23 T/R / DIODE ARRAY GP 180V 200MA SOT23
Datasheet
MMBD1503-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 180V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 1.3V @ 200mA
Current - Reverse Leakage @ Vr 10nA @ 180V
Operating Temperature - Junction -55°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-23
Win Source Part Number 1078228-MMBD1503-TP
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Family Name MMBD1503
Introduction Date March 29, 2001
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian MMBD1503-TP CAD Model

Description

The Micro Commercial Co MMBD1503-TP is a standard diode with a maximum reverse voltage of 180V and an average rectified current of 200mA per diode.

  • Forward Voltage: 1.3V @ 200mA
  • Reverse Leakage Current: 10nA @ 180V
  • Diode Configuration: 1 pair series connection
  • Operating Temperature Range: -55°C to 150°C
  • Status: Common-used part
  • Package: SOT-23
  • Packaging: Reel of 3000 pieces
