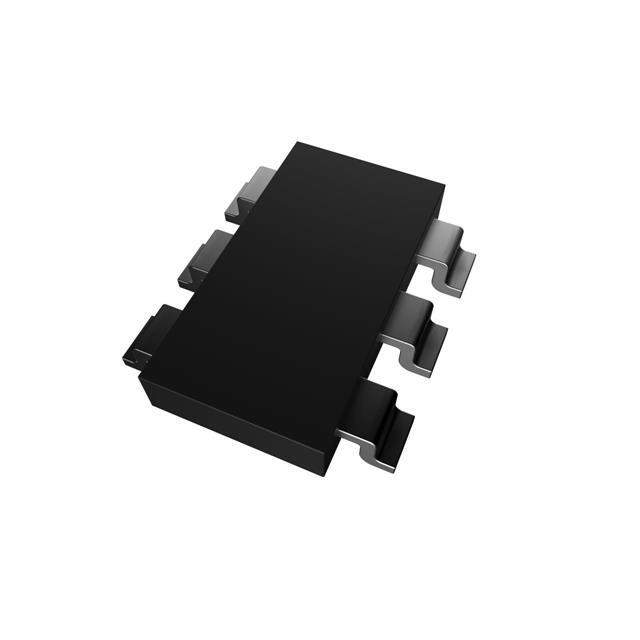

SD103ATW-TP Real Image
Same model may have multiple batches, images only for reference.

SD103ATW-TP

Part No SD103ATW-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Datasheet
SD103ATW-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Micro Commercial Co
Package Tape & Reel
Diode Configuration 3 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) (per Diode) 175mA
Voltage - Forward (Vf) (Max) @ If 500 mV @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 10 ns
Current - Reverse Leakage @ Vr 5 µA @ 30 V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)
Package / Case 6-TSSOP, SC-88, SOT-363
Supplier Device Package SOT-363
Base Product Number SD103
Other Names SD103ATWTP,SD103ATWTPMSCT,SD103ATWTPMSDKR,SD103ATWTPMSTR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1283023-SD103ATW-TP
Ultra Librarian 3D Model Ultra Librarian SD103ATW-TP CAD Model

Description

The Micro Commercial Co SD103ATW-TP is a small signal Schottky diode with a maximum DC reverse voltage of 40V and a maximum forward voltage of 500 mV @ 100 mA.

  • DC Reverse Voltage (Max): 40V
  • Forward Voltage (Max): 500 mV @ 100 mA
  • Package: 6-TSSOP, SC-88, SOT-363
  • Supplier Device Package: SOT-363
