Same model may have multiple batches, images only for reference.

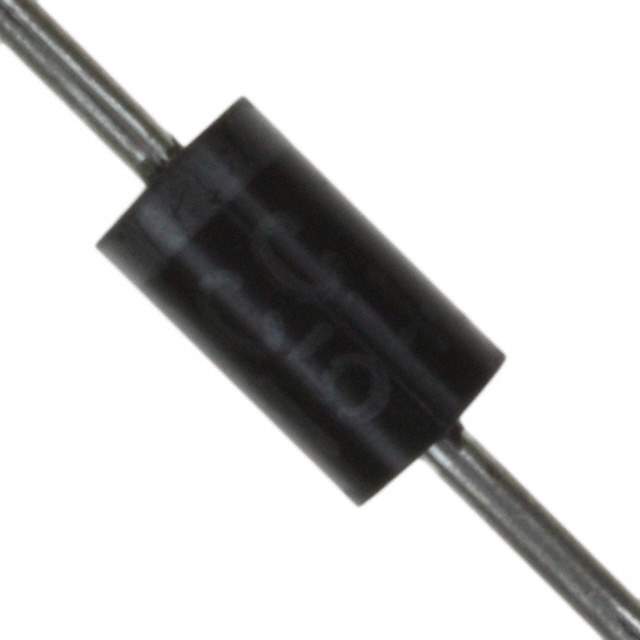

SF36-AP Real Image
Same model may have multiple batches, images only for reference.

SF36-AP

Part No SF36-AP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Datasheet
SF36-AP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Micro Commercial Co
Package Tape & Box (TB)
Product Status Obsolete
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 3A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package DO-201AD
Operating Temperature - Junction -55°C ~ 125°C
Standard Package 1,200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282471-SF36-AP
Ultra Librarian 3D Model Ultra Librarian SF36-AP CAD Model

Description

The 1282471-SF36-AP is a fast recovery diode that is designed for rectification purposes.

  • Type: Standard Diode
  • Maximum Reverse Voltage: 400 V
  • Average Rectified Current: 3A
  • Reverse Recovery Time: 35 ns
  • Capacitance @ Vr, F: 80pF @ 4V, 1MHz
  • Operating Temperature Range: Between -55°C to 125°C
  • Package: DO-201AD axial package
  • Mounting Type: Through-Hole
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.10.0080
  • Manufacturer: Micro Commercial Co
