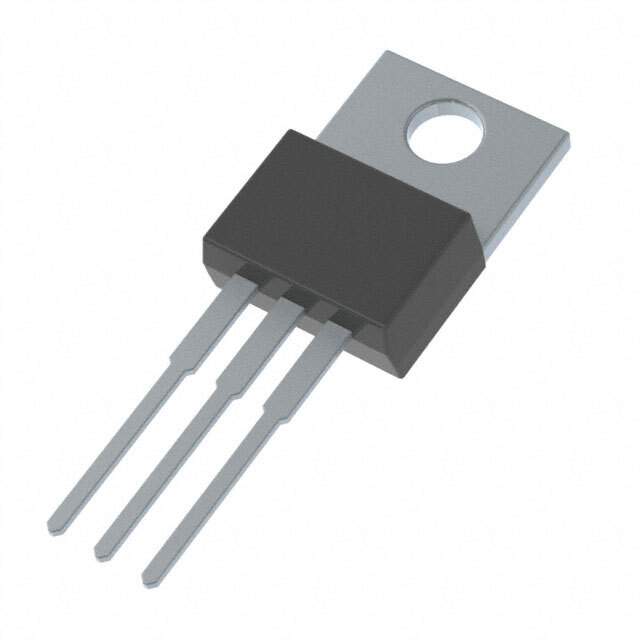

Same model may have multiple batches, images only for reference.

TIP41C-BP

Name: TIP41C-BP
Brand: Micro Commercial Co
SKU: 524255
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TIP41C-BP
Manufacturer	Micro Commercial Co
Catalog	Transistors (BJT) - Single
Description	TRANS NPN 100V 6A TO-220
Datasheet	TIP41C-BP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Micro Commercial Co
Packaging	Tube/Rail
Status	Active
Transistor Polarity	NPN
Maximum Current Collector	6A
VCEO Maximum Collector-Emitter Breakdown Voltage	100V
Max Vce (sat)	1.5V @ 600mA, 6A
Collector Cut-off Current(Max)	700μA
Typical Gain (hFE) (Min)	15 @ 3A, 4V
Maximum Power Dissipation	2W
Frequency - Transition	3MHz
Temperature Range - Operating	150°C (TJ)
Mounting	Through Hole
Case / Package	TO-220
Win Source Part Number	1107289-TIP41C-BP
Popularity	Medium
Supply and Demand Status	Balance
Application Field	Used in Industrial, Power Management
Quantity per package	1k pcs
Ultra Librarian 3D Model	Ultra Librarian TIP41C-BP CAD Model

Alternative Products

Description

The Micro Commercial Co TIP41C-BP is an NPN transistor that has a maximum current collector of 6A.

VCEO maximum collector-emitter breakdown voltage: 100V
Max Vce (sat): 1.5V @ 600mA, 6A
Collector Cut-off Current (Max): 700μA
Typical Gain (hFE) (Min): 15 @ 3A, 4V
Maximum Power Dissipation: 2W
Frequency Transition: 3MHz
Transistor Polarity: NPN
Device Package: TO-220
Quantity per package: 1k pcs
