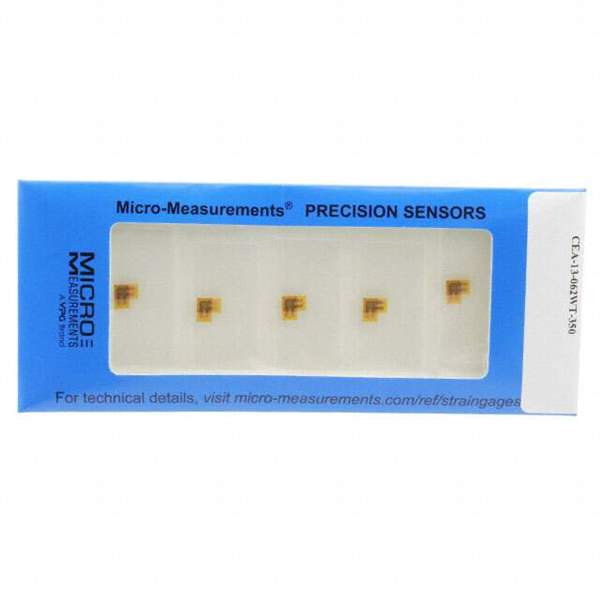

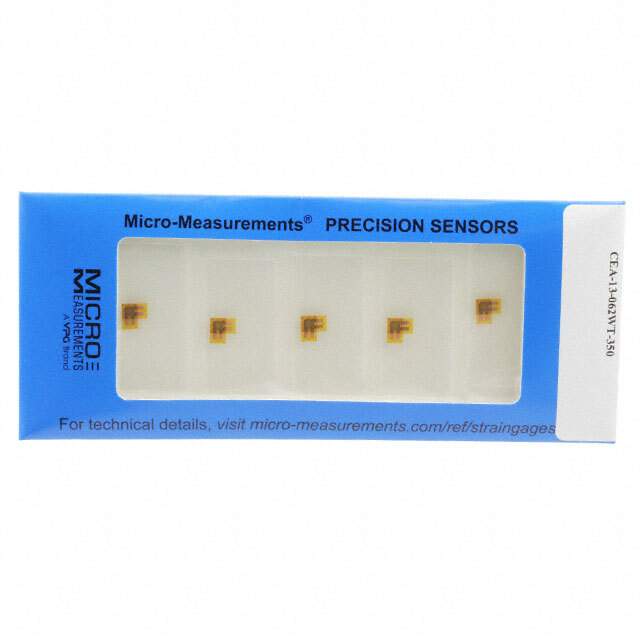

MMF003114 Real Image
Same model may have multiple batches, images only for reference.

MMF003114

Part No MMF003114
Manufacturer Micro-Measurements (Division of Vishay Precision Group)
Catalog Specialized Sensors
Description STRAIN GAUGE 350 OHM TEE 1=5PC / Tee Rosette Strain Gauge ±3% 0.062" (1.57mm) per section 0.120" (3.05mm) per section
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Strain Gauges
Mfr Micro-Measurements (Division of Vishay Precision Group)
Series CEA
Package Bulk
Product Status Obsolete
Pattern Type Tee Rosette
Strain Range ±3%
Resistance 350 Ohms
Resistance Tolerance ±0.5%
Length - Active 0.062" (1.57mm) per section
Length - Overall Pattern 0.235" (5.97mm)
Length - Overall 0.33" (8.3mm)
Width - Active 0.120" (3.05mm) per section
Width - Overall Pattern 0.235" (5.97mm)
Width - Overall 0.33" (8.3mm)
Temperature Range - Operating -100 ~ 150°F (-75 ~ 65°C)
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9031.80.8085
Win Source Part Number 1341092-MMF003114
Ultra Librarian 3D Model Ultra Librarian MMF003114 CAD Model

Description

The CEA strain gauge sensor is designed for measuring strain in industrial applications.

  • Pattern Type: Tee Rosette
  • Strain Range: ±3%
  • Overall Length: 0.33 inches
  • Overall Width: 0.33 inches
  • Resistance: 350 Ohms
  • Resistance Tolerance: ±0.5%
  • Packaging: bulk
  • Operating Temperature: -100°F ~ 150°F (-75°C ~ 65°C)
  • Supplier: Micro-Measurements (Division of Vishay Precision Group)
  • Standard Package: 1
  • Section Length: 0.062 inches
  • Section Width: 0.120 inches
  • Overall Pattern Length: 0.235 inches
  • Overall Pattern Width: 0.235 inches
