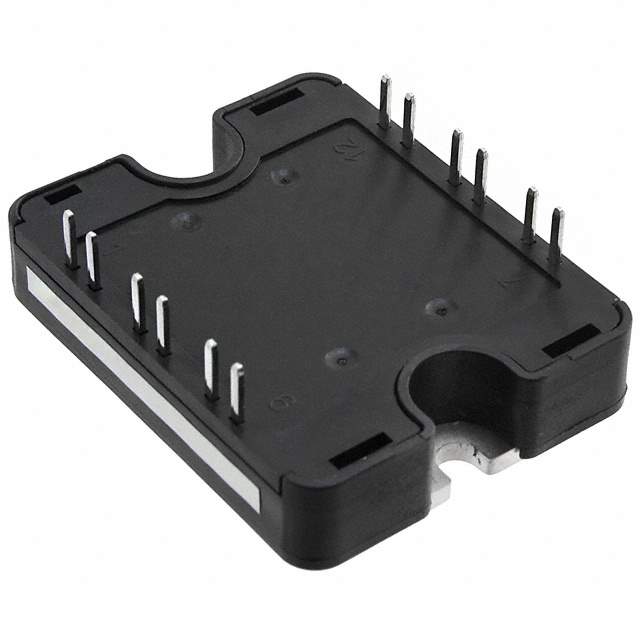

The APTGF25H120T1G is a cutting-edge power semiconductor device designed and manufactured by Microchip Technology, a global leader in microcontroller and analog semiconductors. This IGBT (Insulated Gate Bipolar Transistor) is engineered to provide high efficiency and fast switching in a variety of applications, including motor drives, renewable energy inverters, UPS systems, and power management solutions.

Key Features

• Voltage Rating: The device is rated for a collector-emitter voltage of up to 1200V, making it suitable for high-voltage applications.
• Current Capacity: With a continuous collector current of 25A at 25°C, it can handle significant power levels.
• Low On-Resistance: The APTGF25H120T1G boasts a low on-state voltage drop due to its optimized IGBT design, which enhances overall efficiency.
• Switching Performance: Fast switching capabilities reduce energy losses during the turn-on and turn-off process, increasing the performance in high-frequency applications.
• Robustness: The device is designed with a rugged, reliable construction that ensures stable operation even under harsh conditions.
• Temperature Performance: It operates effectively over a wide temperature range, ensuring reliability in a variety of environmental conditions.

Applications

The versatility of the APTGF25H120T1G allows it to be used in an array of power electronic applications. Its robustness and efficiency make it particularly well-suited for:

• Industrial Motor Drives
• Solar Power Inverters
• Uninterruptible Power Supplies (UPS)
• Electric Vehicle (EV) Charging Stations
• Power Factor Correction Circuits

Quality and Reliability

Microchip Technology is committed to delivering high-quality products. The APTGF25H120T1G IGBT is no exception, as it undergoes rigorous testing and quality assurance processes to ensure it meets the industry's highest standards for performance and reliability.

Environmental Compliance

Compliant with RoHS regulations, the APTGF25H120T1G is designed with environmental considerations in mind, ensuring that it adheres to global standards for the restriction of hazardous substances in electronic equipment.
