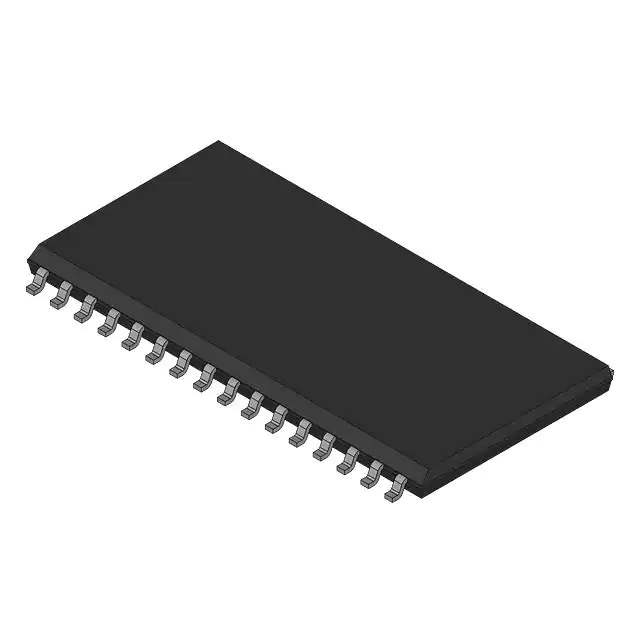

Microchip Technology AT90PWM3-16SQ Overview

The AT90PWM3-16SQ is a high-performance, low-power AVR 8-bit microcontroller from Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This microcontroller is specifically designed to provide an optimal solution for power applications, making it an excellent choice for developers looking to design and implement advanced motor control systems, lighting systems, and power conversion equipment.

Key Features

• Advanced RISC Architecture: The AT90PWM3-16SQ boasts a powerful Reduced Instruction Set Computing (RISC) architecture, which enables fast and efficient processing with low power consumption.
• High-Performance PWM: With its high-resolution Pulse Width Modulation (PWM) capabilities, this microcontroller offers precise control over power applications, which is critical for managing motor speeds and dimming lights with high accuracy.
• On-Chip Analog Features: It includes on-chip analog features such as an Analog Comparator and an Analog-to-Digital Converter (ADC), which facilitate the monitoring and control of external sensors and signals.
• Robust Timer/Counters: Equipped with multiple timer/counters, the AT90PWM3-16SQ provides a variety of timing and counting functionalities that are essential for creating time-critical tasks and events.
• Flexible Oscillator Options: The device supports a range of oscillator options, including external and internal clock sources, giving designers the flexibility to choose the best clocking solution for their application.
• In-System Programmable: This microcontroller supports in-system programming, allowing for firmware updates and application adjustments after the hardware has been deployed, which is invaluable for product maintenance and upgrades.

Applications

The versatility of the AT90PWM3-16SQ makes it suitable for a wide array of applications, particularly those requiring precise power control. It is commonly used in:

• Brushless DC motor control
• AC induction motor control
• LED lighting and dimming systems
• Power supply units
• Battery chargers
• Inverters and converters

With its blend of performance, power efficiency, and specialized features for power control, the AT90PWM3-16SQ from Microchip Technology stands out as an excellent microcontroller choice for developers and engineers seeking to innovate in the field of power electronics.
