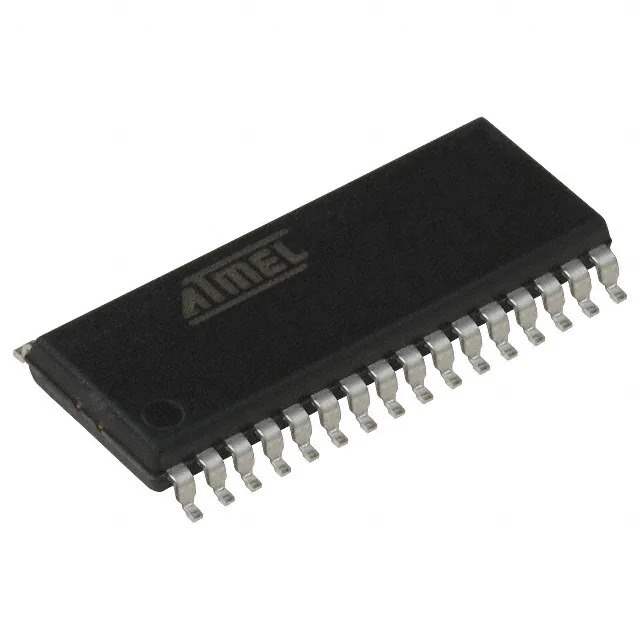

Microchip Technology AT90PWM316-16SU

The AT90PWM316-16SU is a high-performance, low-power AVR® 8-bit microcontroller from Microchip Technology, designed to offer an optimal solution for sophisticated control systems, particularly in the realm of power management and motor control. This microcontroller integrates advanced features that cater to applications requiring a combination of interface flexibility, CPU power, and reduced power consumption.

Key Features:

• Advanced RISC Architecture: The AT90PWM316-16SU is built upon a powerful RISC architecture that enables fast and efficient processing with a wide range of instructions that can be executed in a single clock cycle.
• High Precision PWM: It comes equipped with a high precision Pulse Width Modulation (PWM) unit, making it particularly suitable for applications requiring precise control over power delivery and motor operation.
• Integrated Analog Features: The microcontroller includes an array of analog features such as an Analog Comparator and a 10-bit Analog-to-Digital Converter (ADC), which facilitate advanced sensing and monitoring applications.
• On-chip Debugging: On-chip debug capability allows for streamlined development and debugging process, making it easier to bring products to market faster.
• Power Efficiency: Designed with power efficiency in mind, the AT90PWM316-16SU supports multiple power-saving modes, which are vital for battery-operated and power-sensitive devices.
• Package and Speed: The device is available in a 32-lead TQFP package and operates at a clock speed of 16MHz, providing a balance of compactness and computational speed.

Applications:

With its robust feature set, the AT90PWM316-16SU is well-suited for a diverse array of applications, including but not limited to:

• Motor Control Systems
• LED Lighting Systems
• Power Supply Management
• Battery Chargers
• Smart Sensors
• Automotive and Industrial Control Systems

In conclusion, the AT90PWM316-16SU from Microchip Technology is a versatile and efficient microcontroller that provides designers with the tools necessary to create advanced, power-conscious control systems. Its integration of PWM, analog features, and debug capabilities, packaged in a compact form factor, make it an excellent choice for a wide range of applications.
