Microchip Technology's AT91SAM9G45B-CU: A High-Performance Embedded MPU

The AT91SAM9G45B-CU is a robust microprocessor unit (MPU) designed by Microchip Technology, tailored for a broad range of industrial and consumer applications requiring high data processing and optimized power consumption. This versatile component is built around the ARM926EJ-S ARM Thumb Processor, which operates at a maximum speed of 400 MHz and provides a balanced performance for embedded systems.

Integrating a rich set of peripherals, the AT91SAM9G45B-CU offers multiple connectivity options including USB, SDIO/SD/MMC, UARTs, SPI, I2C, and Ethernet. Its comprehensive interface capabilities make it an ideal choice for applications such as smart grid devices, industrial control systems, point-of-sale terminals, and medical equipment.

The MPU is equipped with a Memory Management Unit (MMU) that supports modern operating systems and provides a mechanism for virtual memory management—enhancing the system's reliability and security. With a 64 KB ROM and a 64 KB SRAM, it allows for efficient bootstrapping and system configuration. Additionally, the AT91SAM9G45B-CU supports external memory interfaces for NAND flash, DDR2, and LPDDR, giving developers the flexibility to scale memory according to their application needs.

Power management is a critical aspect of modern MPUs, and the AT91SAM9G45B-CU does not disappoint. It features multiple power-saving modes, including idle and standby, which help in reducing power consumption during periods of inactivity. Safety and security are also addressed with its built-in features such as a real-time clock, watchdog timer, and a range of hardware-based security peripherals.

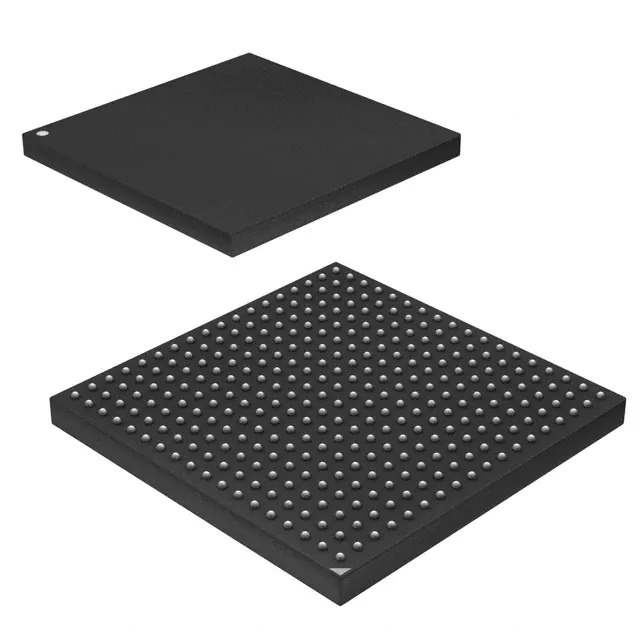

The package is a 217-ball BGA, which is designed for compact and integrated designs, ensuring a small footprint on the PCB. For developers, Microchip Technology provides extensive support through software libraries, development kits, and a global network of technical support to streamline the development process.

In summary, the AT91SAM9G45B-CU from Microchip Technology is a sophisticated and highly capable MPU that offers a rich feature set for demanding applications, providing a perfect balance between performance, power efficiency, and connectivity.
