Microchip Technology ATF1504AS-7JC68 Complex Programmable Logic Device (CPLD)

The Microchip Technology ATF1504AS-7JC68 is a high-performance, versatile Complex Programmable Logic Device (CPLD) designed to address a wide array of applications. This device is part of Microchip's ATF15xxAS family, which is well-known for its low power consumption and high functionality. The ATF1504AS-7JC68 offers a robust solution for system logic integration, custom logic development, and a variety of digital signal processing tasks.

Key Features:

• Logic Elements: The CPLD boasts 64 macrocells, which are the building blocks for creating complex logic functions. These macrocells can be interconnected to form a wide range of combinational and sequential logic circuits, providing designers with a flexible platform for innovation.
• System Speed: With a system speed grade of -7, the ATF1504AS-7JC68 provides fast signal processing capabilities, making it suitable for high-speed applications that require quick data throughput and real-time processing.
• I/O Pins: The device features 68 user I/O pins, allowing for extensive interfacing with other components in a system. These pins are programmable, offering versatility in meeting the requirements of various design specifications.
• Reprogrammability: The ATF1504AS-7JC68 is reprogrammable, which means that it can be configured multiple times to implement different logic functions, making it ideal for prototyping, testing, and iterative design processes.
• Power Consumption: As part of the ATF15xxAS series, this CPLD is designed with power efficiency in mind. It operates with a low power consumption profile, which is critical for battery-powered and portable applications.

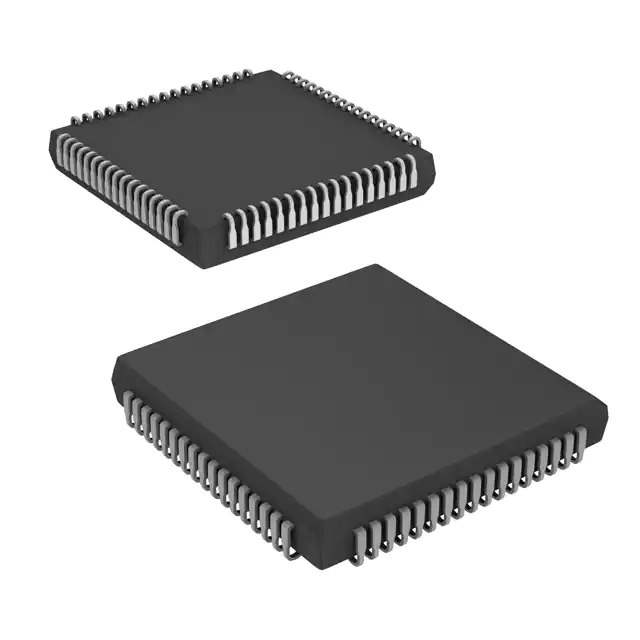

• Package: The device comes in a 68-pin PLCC (Plastic Leaded Chip Carrier) package, which provides a compact footprint while still allowing for easy integration into a variety of PCB designs.

Applications:

The ATF1504AS-7JC68 is suitable for a diverse range of applications, including but not limited to:

• Automotive systems
• Industrial control systems
• Telecommunications infrastructure
• Consumer electronics
• Medical devices
• Security systems

Overall, the ATF1504AS-7JC68 from Microchip Technology is a powerful and adaptable CPLD that offers designers the ability to create sophisticated logic solutions in a compact and energy-efficient package.
