Microchip Technology's ATSAMD20E16A-AU Microcontroller

The ATSAMD20E16A-AU is a high-performance, low-power microcontroller from Microchip Technology, designed to offer a perfect blend of efficiency and versatility for a wide range of embedded applications. This microcontroller is part of the popular SAM D20 family, which is based on the powerful ARM Cortex-M0+ processor core, operating at a maximum frequency of 48 MHz. Its architecture is optimized for minimal power consumption while maintaining excellent processing capabilities.

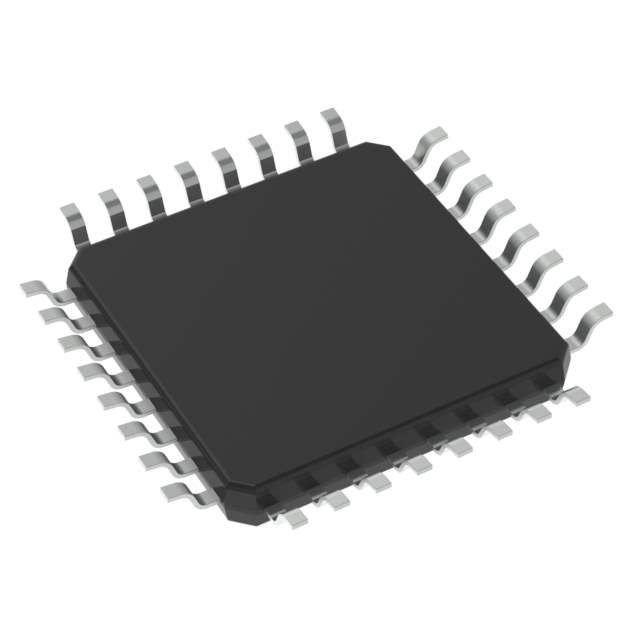

With 16KB of SRAM and 64KB of flash memory, the ATSAMD20E16A-AU provides ample space for application code and data storage. The device comes in a 32-pin TQFP package, making it suitable for space-constrained applications while still offering enough I/O pins for interfacing with peripherals and external devices.

One of the standout features of this microcontroller is its rich set of peripherals. It includes multiple serial communication modules, providing support for I2C, SPI, and USART, which are essential for communication with sensors, memory modules, and other microcontrollers. Additionally, it has 16 external interrupts, allowing for responsive interaction with external events.

The ATSAMD20E16A-AU is also equipped with up to 10 PWM channels, making it an excellent choice for motor control applications and LED lighting systems. Its analog capabilities are robust, featuring up to 6 analog comparators and a 12-bit ADC with up to 14 channels, enabling precise measurement of analog signals.

Energy efficiency is a critical aspect of modern microcontrollers, and the ATSAMD20E16A-AU excels in this area. It operates across a wide voltage range of 1.62V to 3.63V, which allows for flexibility in power supply design. Additionally, it features multiple power-saving modes, including Idle and Standby modes, which significantly reduce power consumption when the device is not in active use.

Developers can take advantage of Microchip's extensive software and hardware ecosystem, including the Atmel Studio IDE, Atmel START code configurator, and a variety of development boards. This support simplifies the development process, from prototype to production, making the ATSAMD20E16A-AU a reliable and user-friendly choice for projects requiring an ARM Cortex-M0+ based microcontroller.
