The ATTINY20-MMH is a high-performance, low-power AVR® 8-bit microcontroller from Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This compact and versatile microcontroller is designed to deliver power efficiency and robust performance in a miniature package, making it an ideal choice for a wide range of applications, including industrial, automotive, and consumer electronics.

Key Features

• Advanced RISC Architecture: The ATTINY20-MMH is built on a high-performance AVR RISC architecture that enables fast and efficient processing with a rich instruction set and 32 x 8 general-purpose working registers.
• Memory: It comes with 2KB of in-system programmable flash memory, 128B EEPROM, and 128B internal SRAM, providing ample space for code and data storage.
• Power Efficiency: Designed for low power consumption, it operates between 1.8-5.5 volts, featuring multiple power-saving modes such as Idle, ADC Noise Reduction, Standby, and Power-down modes.
• Peripherals: The microcontroller includes a variety of integrated peripherals such as an 8-bit timer/counter with PWM, a 10-bit ADC, programmable watchdog timer, and internal calibrated oscillator, enhancing its functionality without the need for external components.
• Speed: It executes powerful instructions in a single clock cycle, achieving throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

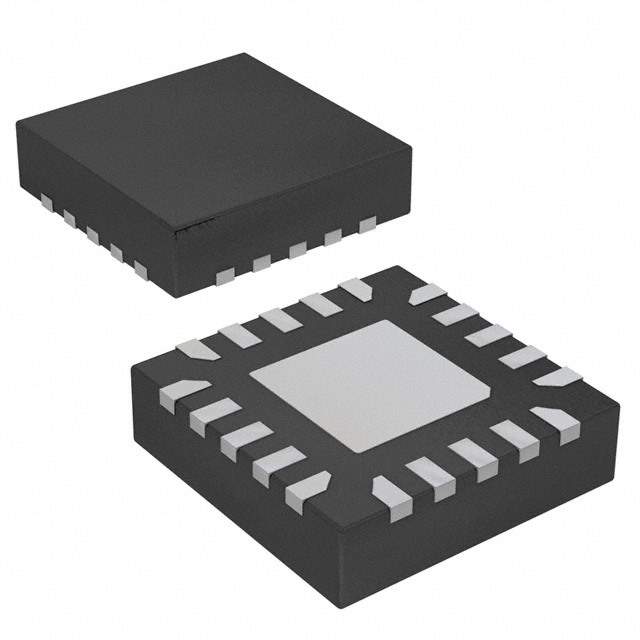

• Package: The ATTINY20-MMH is available in a 20-pad QFN package, which is known for its small footprint and low profile, suitable for space-constrained applications.

Applications

The ATTINY20-MMH is designed for applications where space and power efficiency are critical. It is commonly used in:

• Consumer Electronics: Toys, wearable devices, and smart appliances.
• Industrial Control Systems: Sensors, small actuators, and process control devices.
• Automotive: Body control modules, intelligent lighting, and accessory control.

With its integration of power efficiency, computing power, and compact design, the ATTINY20-MMH from Microchip Technology stands out as a microcontroller that can meet the needs of innovative and sophisticated electronic designs.
