Product Overview: DSA1001DL2-036.8640VAO

The DSA1001DL2-036.8640VAO is a high-precision, low-jitter oscillator from Microchip Technology, designed to meet the stringent requirements of today's advanced electronic systems. This oscillator is a part of Microchip's DSA series, which is renowned for its stability, reliability, and performance. The DSA1001DL2-036.8640VAO is an ideal choice for applications that require a stable clock signal with minimal phase noise and jitter.

Key Features

• Frequency: The oscillator operates at a frequency of 36.8640 MHz, providing a highly stable clock source for various applications.
• Supply Voltage: It is designed to work with a supply voltage of 3.3V, making it compatible with a wide range of electronic devices.
• Output Type: This model provides an HCMOS output, known for its high speed and push-pull nature, ensuring a reliable digital signal.

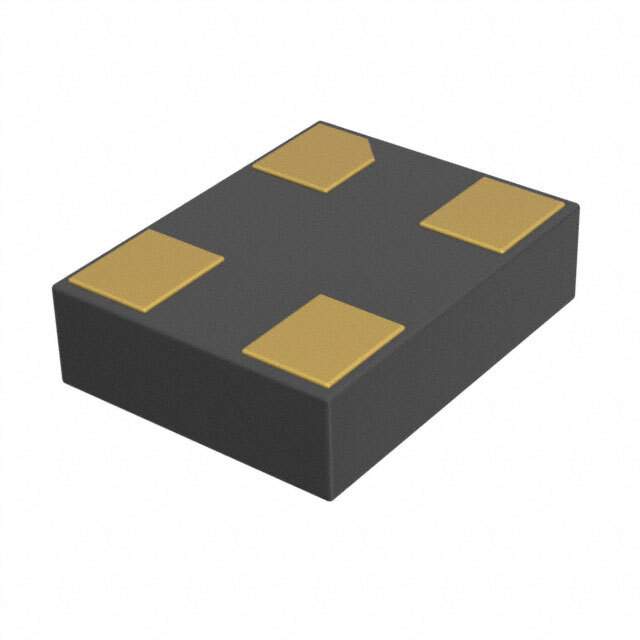

• Package: Enclosed in a compact surface-mount package, the DSA1001DL2-036.8640VAO is designed for space-saving on printed circuit boards.
• Temperature Stability: The oscillator maintains its performance across a wide temperature range, ensuring consistent operation under varying environmental conditions.
• Low Phase Noise: With its low phase noise characteristic, it is suitable for RF and wireless communication systems where signal integrity is critical.

Applications

The DSA1001DL2-036.8640VAO is versatile and can be used in a multitude of applications, including but not limited to:

• Telecommunications
• Networking equipment
• Server and storage platforms
• Industrial controls
• Test and measurement systems
• High-speed digital signal processing

Quality and Reliability

Microchip Technology is a leader in the field of microcontrollers and analog semiconductors, and the DSA1001DL2-036.8640VAO is built with the same commitment to quality and reliability that customers have come to expect from Microchip products. Users can trust this oscillator to provide a stable and reliable performance, which is critical for the success of their electronic projects.
