Product Overview: DSC1123CI2-156.2500

The DSC1123CI2-156.2500 is a high-performance, precision MEMS oscillator designed and manufactured by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This oscillator is part of Microchip's comprehensive range of timing solutions that cater to a wide array of applications, from consumer electronics to industrial systems.

Key Features

• Frequency: The DSC1123 series oscillator operates at a fixed frequency of 156.2500 MHz, making it ideal for applications requiring a stable and accurate clock source.

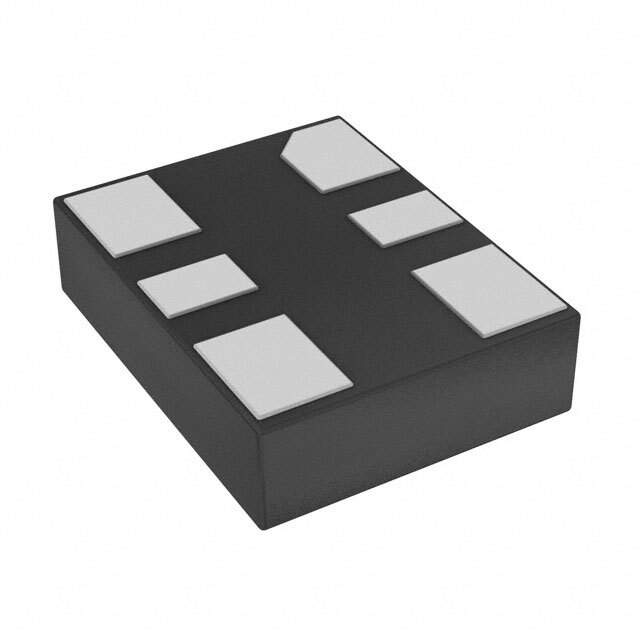

• Package: Housed in a compact, industry-standard 6-pin ceramic package, the DSC1123CI2-156.2500 measures just 3.2 x 2.5 mm (L x W), which allows for space-saving on PCB designs and is suitable for high-density mounting.
• Supply Voltage: It operates from a supply voltage of 1.8V to 3.3V, providing design flexibility for different system power requirements.
• Stability: The device offers excellent frequency stability, making it a reliable choice for applications that cannot tolerate frequency deviations due to environmental factors such as temperature changes.
• Output: The oscillator provides a low-jitter, high-quality LVDS (Low-Voltage Differential Signaling) output, which is essential for high-speed digital communication applications.
• Operating Temperature Range: It is designed to operate over an industrial temperature range of -40°C to +85°C, ensuring performance across a wide range of environmental conditions.

Applications

The DSC1123CI2-156.2500 is well-suited for various applications, including but not limited to:

• Networking equipment such as routers, switches, and base stations
• High-performance computing and storage systems
• Telecommunications infrastructure
• Industrial control systems
• Consumer electronics

Quality and Reliability

Microchip Technology is known for its commitment to quality and reliability. The DSC1123CI2-156.2500 is no exception, as it is built to meet stringent industry standards. Customers can expect consistent performance and longevity, backed by Microchip's expertise in timing solutions.

Environmental Compliance

The DSC1123CI2-156.2500 oscillator is RoHS compliant, ensuring it meets the European Union's directive on the restriction of hazardous substances in electronic equipment. This commitment to environmental responsibility makes it a suitable choice for eco-conscious manufacturers and consumers alike.
