Microchip Technology's DSC6021CI1A-005R MEMS Oscillator

The DSC6021CI1A-005R is a cutting-edge MEMS (Micro-Electro-Mechanical Systems) oscillator designed and manufactured by Microchip Technology, a leader in the field of smart, connected, and secure embedded control solutions. This compact and highly reliable component is engineered to provide precise timing solutions for a wide array of applications, ranging from consumer electronics to industrial and automotive systems.

Key Features

• Frequency Range: The DSC6021 series offers a frequency range of 2.3 kHz to 100 MHz, with the 005R variant specifically tuned to 5 MHz, providing a stable frequency source for various electronic applications.

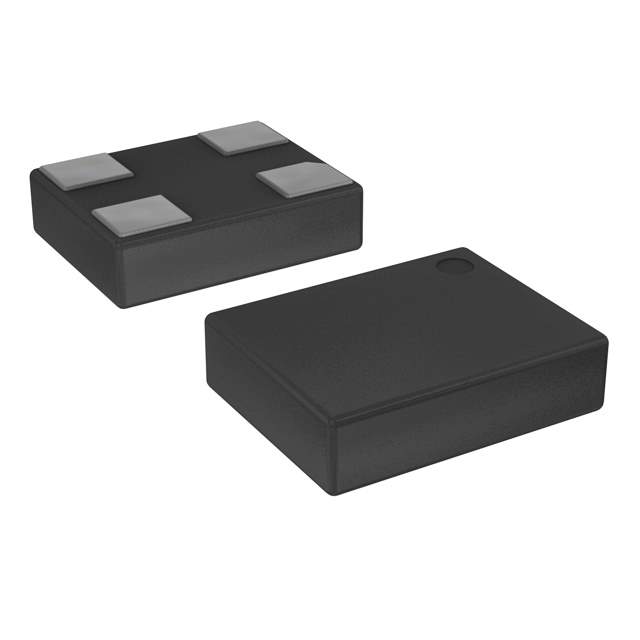

• Package Size: Boasting a miniature footprint, the device comes in a 2.5 x 2.0 mm package, making it ideal for space-constrained applications without compromising performance.
• Supply Voltage: It operates at a nominal supply voltage of 1.8V, catering to low-power requirements and contributing to overall system power efficiency.
• Stability: The oscillator maintains excellent frequency stability of ±25 ppm over the industrial temperature range of -40°C to +85°C, ensuring consistent performance under varying environmental conditions.
• Output Type: The DSC6021CI1A-005R provides a CMOS/LVTTL compatible output, allowing for easy integration into a wide variety of digital systems.
• Standard Certifications: It is compliant with industry standards such as RoHS and Pb-free, reflecting Microchip's commitment to environmental sustainability and safety.

Applications

The versatility of the DSC6021CI1A-005R MEMS oscillator makes it suitable for a diverse set of applications, including but not limited to:

• Portable and wearable technology where size and power consumption are critical.
• Wireless communication systems requiring stable and reliable clock sources.
• Industrial control systems that operate in harsh environmental conditions.
• Automotive electronics that demand high reliability and performance.
• Internet of Things (IoT) devices that benefit from the oscillator's compact size and energy efficiency.

Overall, the DSC6021CI1A-005R from Microchip Technology is an excellent choice for designers seeking a high-performance, space-saving, and energy-efficient timing solution.
