Microchip Technology DSC6121MA3B-01QJT MEMS Oscillator

The DSC6121MA3B-01QJT is a high-performance, low-power MEMS oscillator from Microchip Technology, designed to deliver exceptional stability and reliability for a wide range of applications. This compact and versatile component is an ideal choice for designers looking to enhance their systems with a precision timing solution that combines the benefits of MEMS technology with low power consumption.

Key Features

• Frequency Range: The oscillator operates at a fixed frequency of 1.0 MHz, which is suitable for various digital applications that require a stable clock source.
• Supply Voltage: It supports a supply voltage range of 1.71V to 3.63V, accommodating a variety of power supply configurations and ensuring compatibility with both 3.3V and 1.8V logic levels.
• Low Power Consumption: Designed with power-sensitive applications in mind, this oscillator maintains low current consumption, making it ideal for battery-operated devices.
• Stability: Offers excellent frequency stability of ±25 ppm, ensuring reliable operation even under varying environmental conditions.

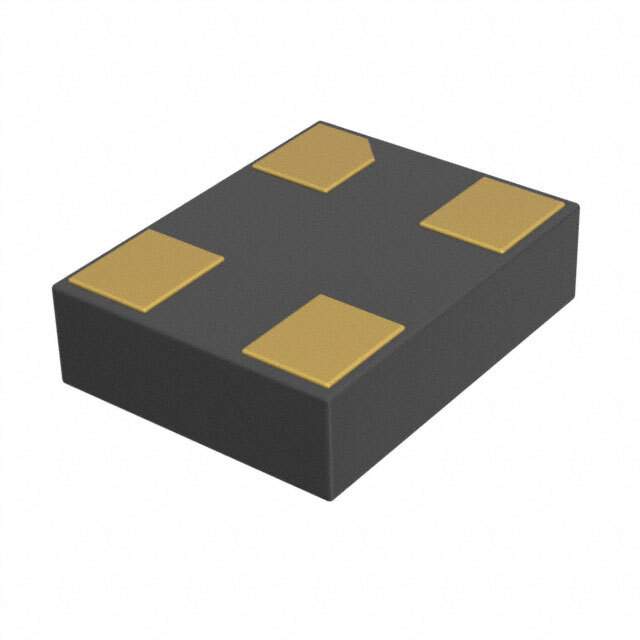

• Package: The device comes in a compact 4-SMD, no lead package, which minimizes the required board space and is suitable for high-density mounting.
• Operating Temperature: It is designed to operate over an industrial temperature range of -40°C to +85°C, making it robust enough for challenging environments.
• Output Type: The oscillator provides a CMOS output, which is compatible with most digital circuits and allows for easy integration into system designs.

Applications

The DSC6121MA3B-01QJT is a versatile component that can be used in a diverse array of applications, including:

• Portable and wearable devices
• Internet of Things (IoT) devices
• Industrial controls and automation
• Medical monitoring equipment
• Automotive electronics
• Consumer electronics

With its combination of high precision, low power, and compact form factor, the DSC6121MA3B-01QJT from Microchip Technology is an excellent choice for designers seeking a reliable and efficient timing solution for their next project.
