Microchip Technology's DSPIC30F2010-30I/MM Product Overview

The DSPIC30F2010-30I/MM is a high-performance, 16-bit Digital Signal Controller (DSC) from Microchip Technology, designed to seamlessly blend the control features of a microcontroller (MCU) with the computational capabilities of a digital signal processor (DSP). This integration makes the DSPIC30F2010-30I/MM an ideal choice for applications requiring sophisticated algorithms, such as motor control, power conversion, and sensor processing.

Key Features

• Core: The device features a 16-bit modified Harvard architecture with an up to 30 MIPS performance at 30MHz clock speed, offering a robust platform for executing complex digital signal processing routines and control algorithms.
• Memory: It comes with 12KB of on-chip Flash memory for program storage and 512 Bytes of RAM for data, providing ample space for application code and variables.
• Advanced PWM: The enhanced Pulse Width Modulation (PWM) modules support motor control and power conversion applications, with features like independent output modes and dead-time control.
• Robust Timers: Multiple 16-bit and 32-bit timers are available, including a dedicated motor control PWM timer, ensuring precise event timing and system control.
• Analog-to-Digital Converter (ADC): A 10-bit ADC with up to 4 input channels enables the DSPIC30F2010-30I/MM to interface with analog sensors and transducers.
• Communication Interfaces: The device includes a variety of communication peripherals such as UART, SPI, and I2C for versatile connectivity options.
• Temperature Range: The DSPIC30F2010-30I/MM operates within the industrial temperature range of -40°C to +85°C, ensuring reliable performance under harsh conditions.

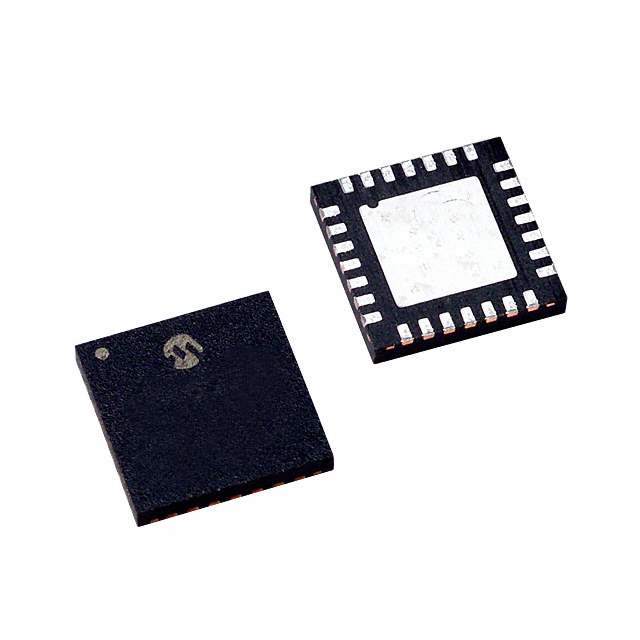

• Package: It is available in a compact 28-pin QFN package, suitable for space-constrained applications.

Applications

The DSPIC30F2010-30I/MM is well-suited for a wide range of applications, including:

• Brushless DC (BLDC) motor control
• AC Induction motor control
• Automotive and aerospace systems
• Power supply and power management systems
• Industrial automation and robotics
• Smart sensors and instrumentation

With its blend of control and DSP capabilities, the DSPIC30F2010-30I/MM from Microchip Technology provides a versatile platform for developing advanced embedded systems requiring precise motor control, efficient power management, and real-time signal processing.
