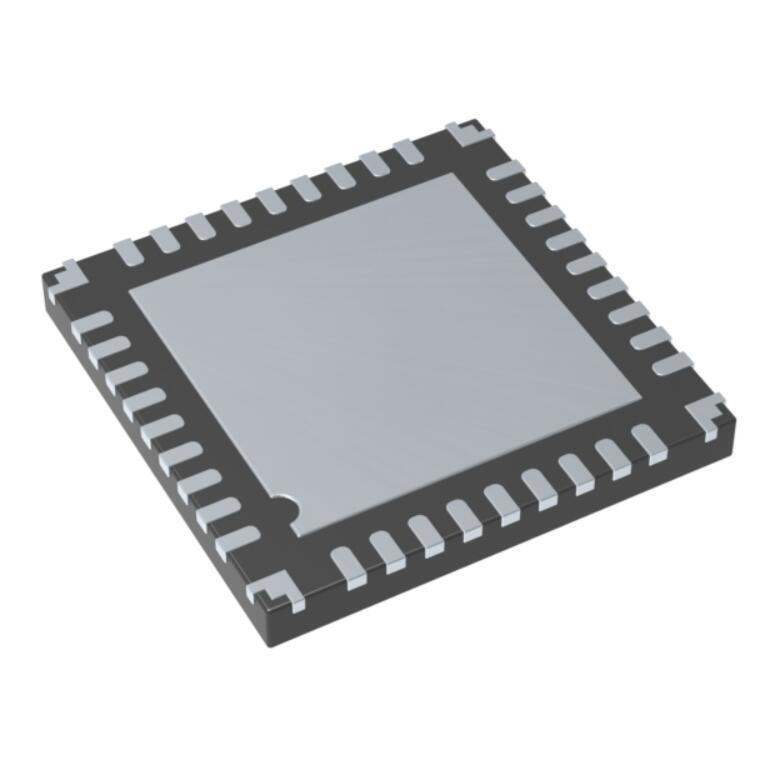

Product Overview: DSPIC33CH128MP203-I/M5

The DSPIC33CH128MP203-I/M5 is a high-performance digital signal controller (DSC) from Microchip Technology, designed to meet the demanding requirements of modern embedded control applications. This DSC is part of the dsPIC33CH family, which is known for its innovative dual-core architecture, combining the capabilities of a microcontroller (MCU) with the processing power of a digital signal processor (DSP).

Key Features:

• Core: The device features a dual-core configuration with one Master core (MCU) and one Slave core (DSP), both operating at speeds up to 100 MHz. The Master core is designed for handling the main application control, while the Slave core is optimized for executing digital signal processing tasks, offering a unique level of system performance and flexibility.
• Memory: It comes with 128 KB of Flash memory and 24 KB of RAM, providing ample space for complex algorithms and applications.
• Communication Peripherals: The DSPIC33CH128MP203-I/M5 is equipped with a rich set of communication peripherals, including UART, SPI, I2C modules, and CAN-FD for robust communication with external devices.
• Advanced Analog Features: The device boasts advanced analog features such as a 12-bit Analog-to-Digital Converter (ADC) with up to 500 ksps, allowing for precise signal acquisition and processing.
• Timers and PWM: It offers multiple timers and up to eight PWM outputs, making it ideal for motor control and other timing-critical applications.
• Robust Design: The DSPIC33CH128MP203-I/M5 is designed to operate in extreme conditions, with a temperature range of -40°C to +85°C and is available in a compact 28-pin QFN package.
• Development Support: Microchip provides extensive development support, including software libraries, development boards, and the MPLAB X Integrated Development Environment (IDE) for streamlined development and debugging.

Applications:

The DSPIC33CH128MP203-I/M5 is ideal for a variety of applications, such as advanced motor control, power conversion, Internet of Things (IoT) devices, automotive systems, and industrial automation, where high computational performance and real-time operation are crucial.

In summary, the DSPIC33CH128MP203-I/M5 from Microchip Technology is a versatile and powerful digital signal controller that offers a unique combination of MCU and DSP capabilities, making it a top choice for engineers looking to develop sophisticated control applications.
