Microchip Technology's DSPIC33CK64MP105-I/M4 Product Overview

The DSPIC33CK64MP105-I/M4 is a cutting-edge Digital Signal Controller (DSC) from Microchip Technology, designed to deliver the perfect blend of power and efficiency for a wide range of applications. This high-performance DSC is part of the dsPIC33CK family, which is well-suited for advanced applications that require sophisticated algorithms and processing power, such as motor control, power conversion, and sensor processing.

Key Features

• Core: The device is built around a dsPIC33CK core that features a modified Harvard architecture, allowing it to execute instructions and access data simultaneously, thereby increasing its overall processing speed and efficiency.
• CPU Speed: With an operating frequency of up to 100 MHz, this DSC provides a high level of performance for computationally intensive applications.
• Program Memory: It comes with 64 KB of flash memory, providing ample space for complex programs and algorithms.
• RAM: The device includes 8 KB of RAM, ensuring smooth operation and data processing.
• I/O Pins: It offers a rich set of peripherals and 28 programmable input/output pins, which are highly flexible and can be tailored to specific application requirements.
• Advanced Analog Features: The DSPIC33CK64MP105-I/M4 is equipped with advanced analog features such as a 12-bit Analog-to-Digital Converter (ADC) with up to 500 ksps, enabling precise sensor measurements and control.
• Robust Timers and Communication Interfaces: A variety of timers, communication interfaces like UART, SPI, and I2C, and other peripherals support complex timing operations and communication with other devices.

Applications

This DSC is ideal for applications that demand robust performance and precise control, such as:

• Automotive systems
• Industrial automation and control systems
• Motor control (BLDC, PMSM, ACIM)
• Power supply and conversion
• Advanced audio applications and IoT devices

Quality and Reliability

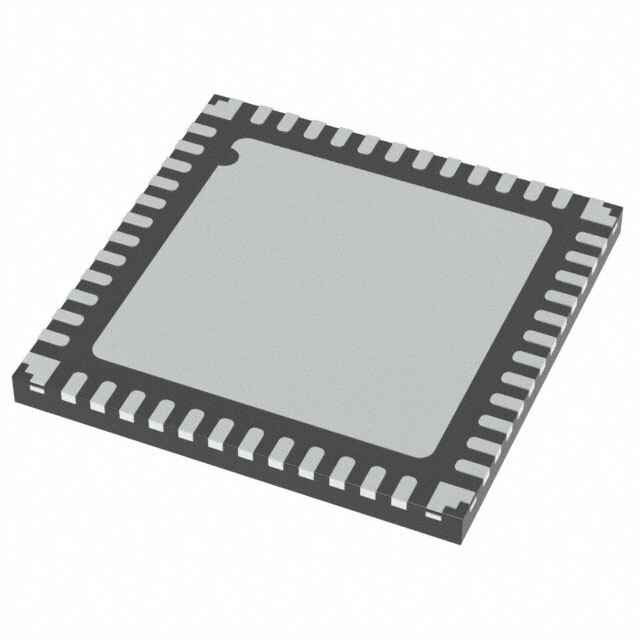

Microchip Technology ensures that the DSPIC33CK64MP105-I/M4 meets the highest quality and reliability standards. The device operates within an industrial temperature range of -40°C to +85°C and comes in a 44-pin QFN package. This level of reliability makes it suitable for demanding environments where consistent performance is critical.

With its advanced features and robust design, the DSPIC33CK64MP105-I/M4 from Microchip Technology stands out as a powerful solution for designers looking to push the boundaries of what's possible in embedded systems.
