Microchip Technology MCP1633T-E/MG Product Overview

The MCP1633T-E/MG is a versatile, high-speed Pulse Width Modulator (PWM) from Microchip Technology, designed to cater to a wide range of power conversion and control applications. This compact, integrated circuit is engineered to deliver exceptional performance for power supply designs, including DC/DC converters, AC/DC converters, and LED drivers, making it an ideal choice for designers looking to optimize their power management solutions.

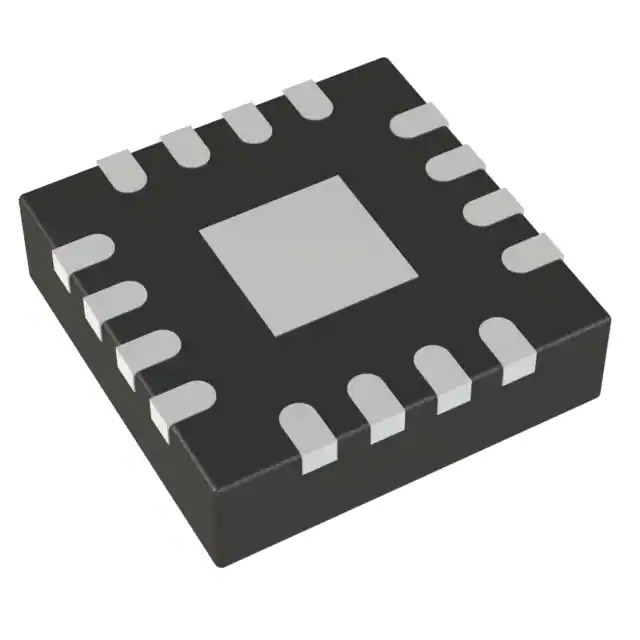

Encased in a 16-lead QFN package, the MCP1633T-E/MG offers a compact footprint for space-constrained applications. Its advanced features and specifications make it a robust and efficient choice for both consumer and industrial products. The device operates at a high frequency, which enables the design of power supplies with small external components, thus reducing the overall solution size and cost.

Key Features of MCP1633T-E/MG

• High-Speed Operation: The device can operate at frequencies up to 1 MHz, allowing for smaller external components and faster transient response.
• Wide Input Voltage Range: It supports an input voltage range that accommodates various power sources, making it versatile for different applications.
• Integrated MOSFET Driver: The MCP1633T-E/MG includes an on-board MOSFET driver, which simplifies the design and reduces external component count.
• Adjustable Output Voltage: The output voltage can be adjusted to meet the needs of the specific application, providing design flexibility.
• Protection Features: It comes with built-in protection features such as over-temperature protection and under-voltage lockout, ensuring reliable operation under adverse conditions.

The MCP1633T-E/MG is not only powerful but also energy-efficient, helping to extend the battery life of portable devices. Its high level of integration and ease of use make it an excellent choice for both novice and experienced designers. Whether you're developing power supplies for consumer electronics, automotive applications, or industrial equipment, the MCP1633T-E/MG provides a high-performance solution that can significantly enhance the efficiency and reliability of your products.

Overall, the MCP1633T-E/MG from Microchip Technology stands out as a high-quality, flexible PWM controller that can meet the demands of a wide array of power management tasks in modern electronic devices.
