Product Overview: MCP1826-3302E/ET by Microchip Technology

The MCP1826-3302E/ET is a high-performance, low-dropout voltage regulator (LDO) from Microchip Technology, designed to deliver a fixed output voltage of 3.3V with an output current of up to 1A. This LDO is an excellent choice for applications requiring a high current, low voltage power supply with minimal power loss.

Key Features

• Output Voltage: The device provides a stable 3.3V output, which is essential for powering sensitive electronic circuits that require a precise voltage level.
• High Current Output: With the capability to deliver up to 1A of output current, this LDO can easily power a wide range of components, from microcontrollers to various digital and analog peripherals.
• Low Dropout Voltage: The MCP1826-3302E/ET boasts a low dropout voltage, ensuring efficient operation even when the input voltage is close to the output voltage, which helps in maximizing battery life in portable applications.
• Thermal Overload Protection: The built-in thermal protection feature prevents damage to the device from overheating, making it reliable for use in a variety of operating conditions.
• Short Circuit Protection: In the event of a short circuit, the regulator automatically shuts down to protect both the power supply and the connected components.
• Stable with Ceramic Output Capacitors: The MCP1826-3302E/ET is designed to be stable with ceramic output capacitors, which are known for their low equivalent series resistance (ESR) and high reliability.

Applications

This voltage regulator is ideal for use in a multitude of electronic applications, including but not limited to:

• Portable devices and battery-operated electronics
• Microcontroller power supplies
• Point-of-load conversions from 5V or 3.3V rails
• Networking and telecommunication equipment
• Peripheral power supplies

Product Package and Quality

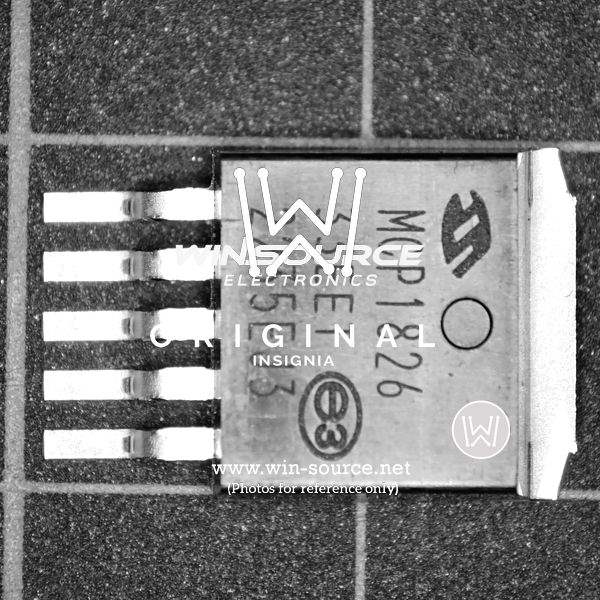

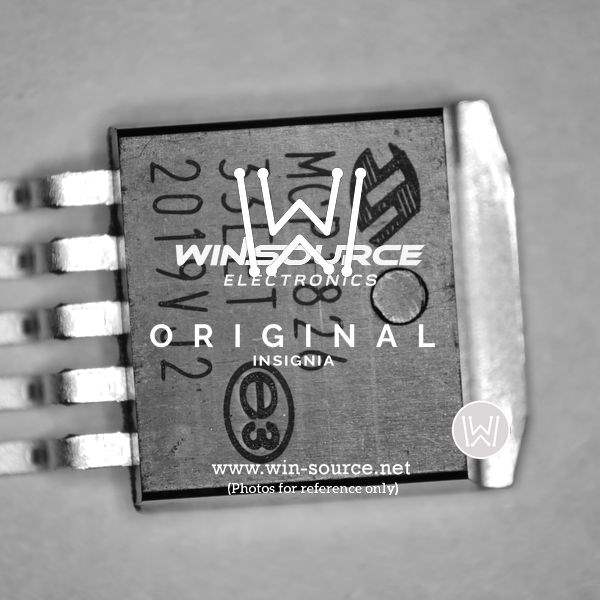

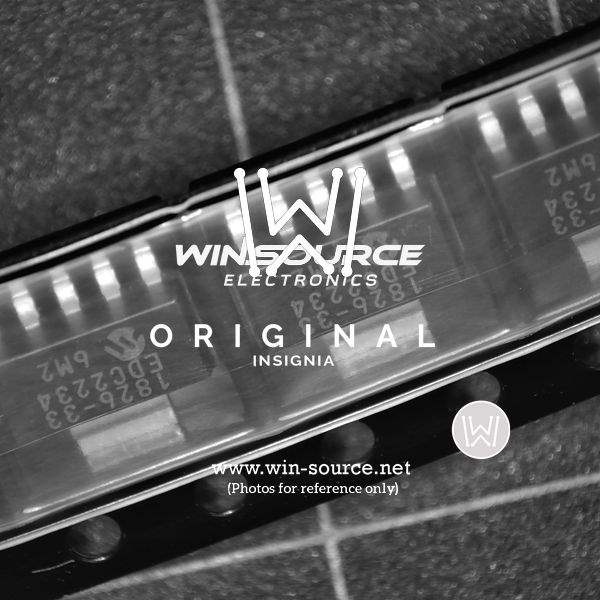

The MCP1826-3302E/ET is available in a 5-lead SOT-223 package, which allows for efficient heat dissipation and compact board layouts. Microchip Technology ensures high-quality standards, providing a reliable and robust solution for your power supply needs.
