Microchip Technology's MCP23S17-E/ML - 16-Bit I/O Expander with Serial Interface

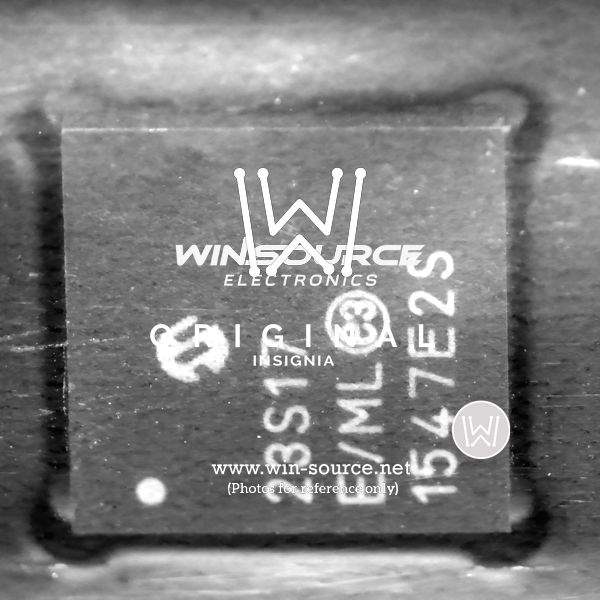

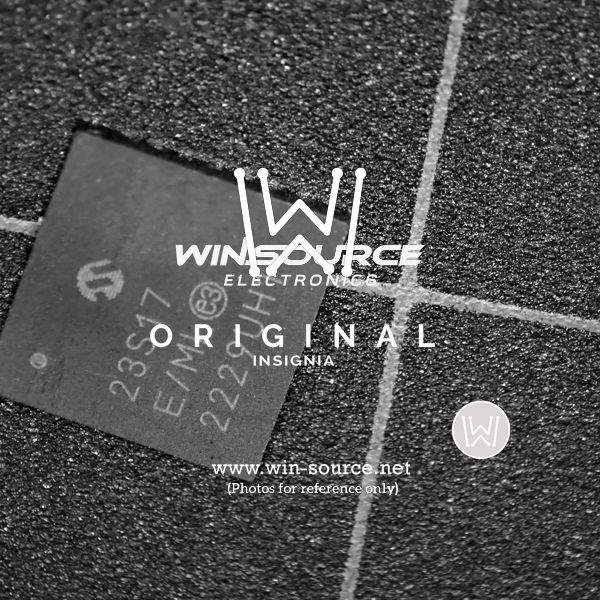

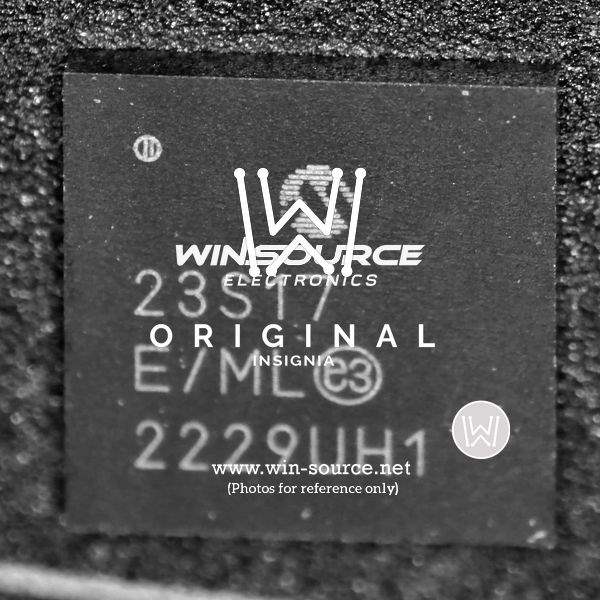

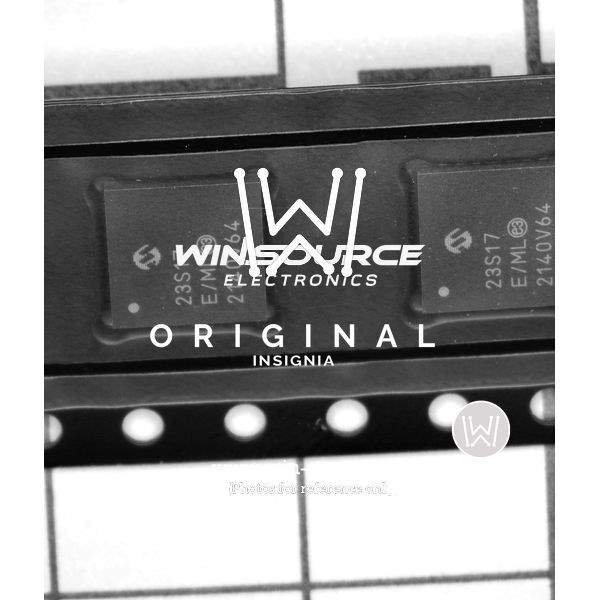

The MCP23S17-E/ML is a versatile 16-bit I/O expander from Microchip Technology, designed to provide additional I/O capabilities to a microcontroller via the Serial Peripheral Interface (SPI). This compact, surface-mount component is housed in a 28-pin QFN (ML) package, offering a space-saving solution for applications where board real estate is at a premium.

At the heart of the MCP23S17-E/ML lies the robustness to operate within a voltage range of 1.8V to 5.5V, making it suitable for a variety of logic levels and ensuring compatibility with both 3.3V and 5V systems. This flexibility is essential for designers who need to integrate the expander into mixed-voltage designs.

The device features two 8-bit ports (Port A and Port B) that can be individually configured as inputs or outputs, providing a total of 16 I/O pins. Each port has its own set of control registers, which can be accessed via SPI, allowing for independent operation and polarity inversion of the pins. This means that users can tailor the behavior of each pin to the specific needs of their application, whether it's driving LEDs, reading button states, or interfacing with other digital devices.

Enhanced with high-current sink/source capability up to 25 mA, the MCP23S17-E/ML can directly drive LEDs while offering protective features such as internal diodes to VCC and ground, providing robustness against electrical overstress. Additionally, the device supports interrupt-on-change functionality, which can notify the host microcontroller of input changes without the need to continuously poll the I/O expander, thus saving valuable processor time and reducing power consumption.

For designers seeking to expand the I/O capabilities of their microcontroller-based systems, the MCP23S17-E/ML from Microchip Technology is an excellent choice. Its rich set of features, combined with the ease of interfacing via SPI, makes it an ideal solution for applications in automation, consumer electronics, automotive, and many other fields where additional I/O ports are required.
