The MCP4141T-503E/MS from Microchip Technology is a high-performance digital potentiometer that offers a reliable and precise solution for adjusting resistance values in a circuit electronically. This versatile component is designed to replace mechanical potentiometers and trimmers in a wide array of applications, including calibration and tuning functions in consumer electronics, industrial systems, and automotive circuits.

Key Features

• Resistance Value: The MCP4141T-503E/MS offers a resistance value of 50kΩ, which can be adjusted through its 7-bit (128 wiper steps) resolution, allowing for fine-grained control over the resistance settings.
• Interface: It utilizes a Serial Peripheral Interface (SPI) which ensures simple and efficient communication with microcontrollers and other digital systems.

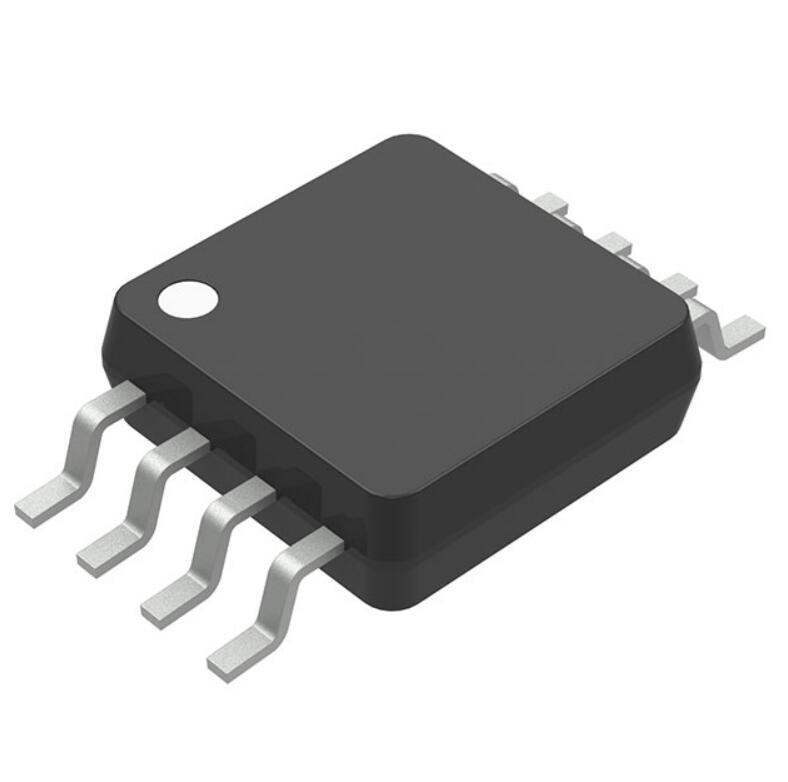

• Package: The device comes in an MSOP-8 (Micro Small Outline Package) that is compact and suitable for space-constrained applications.
• Single-Supply Operation: It can operate from a single 2.7V to 5.5V power supply, making it versatile for use in various circuit designs.
• Non-volatile Memory: The wiper settings can be stored in the non-volatile memory, ensuring that the resistance settings are maintained even after power is cycled.
• Temperature Range: The MCP4141T-503E/MS is designed to function over an industrial temperature range of -40°C to +125°C, suitable for harsh environments.

Applications

This digital potentiometer is ideal for applications that require precise resistance adjustments or settings to be stored and recalled. These include:

• Automotive electronics for sensor calibration
• Consumer electronics for volume and tone control
• Industrial control systems for adjusting thresholds and calibration
• Communication systems for impedance matching
• Portable battery-powered devices due to its low power consumption

The Microchip Technology MCP4141T-503E/MS is a testament to the company's commitment to providing innovative and reliable digital solutions that enhance the flexibility and performance of electronic systems.
