Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tray
Status Obsolete
Output Type Fixed
Number of Regulators 3
Voltage - Input (Maximum) 5.5V
Min/Fixed Output Voltage 3V, 3V, 3V
Maximum Dropout Voltage 0.275V at 250mA, 0.275V at 250mA, 0.275V at 250mA
Output Current 250mA, 250mA, 250mA
Current - Quiescent (Iq) 150μA
Maximum Supply Current 550μA
PSRR 70dB ~ 45dB (100Hz ~ 1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 16-VQFN Exposed Pad, 16-MLF
Supplier Device Package 16-MLF (4x4)
Family Part Number MIC2215
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1222160-MIC2215-PPPYML
Manufacturer Homepage www.micrel.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MIC2215-PPPYML CAD Model

Description

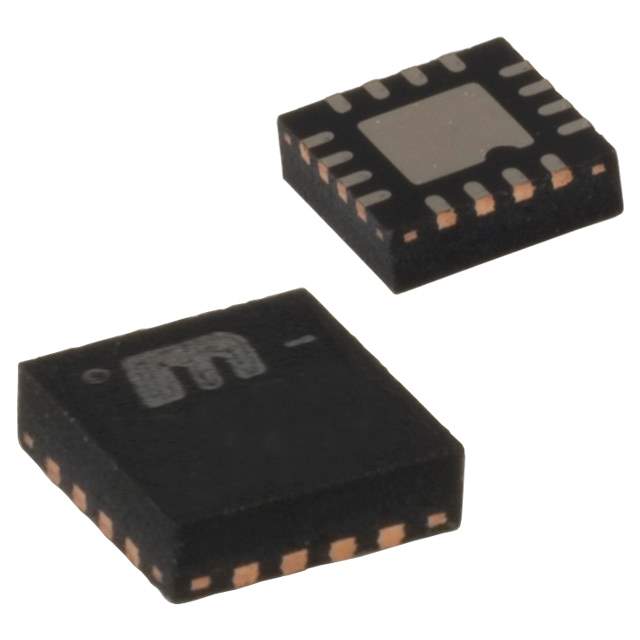

Microchip Technology's MIC2215-PPPYML Power Management IC

The MIC2215-PPPYML is a highly integrated power management solution from Microchip Technology, designed to cater to the demanding needs of modern portable electronic devices. This advanced IC offers a compact and efficient way to manage power within a variety of applications, including smartphones, tablets, wireless peripherals, and other portable gadgets.

At the heart of the MIC2215-PPPYML lies a dual 150mA LDO (Low Dropout Regulator) that ensures a stable and clean power supply, crucial for maintaining the performance and longevity of sensitive electronic components. The LDOs are optimized for low-noise operation, making them ideal for RF and audio applications where power integrity is paramount.

This power management IC stands out with its impressive range of features. It includes a Power-On Reset (POR) circuit, which provides a reliable reset signal to the processor, preventing improper operation at power-up. Additionally, the MIC2215-PPPYML is equipped with a thermal shutdown mechanism that protects the device from overheating, and a current limit feature to safeguard against excessive power draw.

The MIC2215-PPPYML is designed for flexibility, supporting a wide input voltage range that makes it suitable for battery-operated devices. Its high PSRR (Power Supply Rejection Ratio) ensures that the output remains stable despite variations in the input voltage, which is critical for maintaining device performance during battery level fluctuations.

This IC is available in a small 10-pin 2x2mm MLF® package, making it an excellent choice for space-constrained applications. The compact form factor, combined with a low quiescent current, contributes to the extended battery life of the end product, a key consideration for portable electronics.

In summary, the MIC2215-PPPYML from Microchip Technology is a versatile and reliable power management solution that provides clean, stable power with a suite of protective features. Its low-noise design, wide input voltage range, and compact packaging make it an ideal choice for designers looking to enhance the power management system of their next-generation portable devices.
