Microchip Technology's MIC23150-4YMT TR: A High-Efficiency Synchronous Step-Down Regulator

The MIC23150-4YMT TR from Microchip Technology is a cutting-edge synchronous step-down regulator designed for optimal performance in a wide range of applications. This regulator is part of the HyperLight Load® family, which is renowned for its exceptional efficiency at light loads, making it an ideal choice for battery-powered devices where extending battery life is crucial.

With an input voltage range of 2.7V to 5.5V, the MIC23150-4YMT TR is versatile enough to accommodate various power sources, including single-cell lithium-ion batteries, and can provide an adjustable output voltage from 1V to 3.6V. This flexibility ensures that it can be used in a multitude of devices, from portable electronics to wireless peripherals.

One of the key features of this regulator is its high efficiency, which can reach up to 93%. This is achieved through its HyperLight Load® mode, which significantly reduces quiescent current and improves efficiency during light load conditions. Additionally, the MIC23150-4YMT TR offers a high switching frequency of 4MHz, allowing for the use of small external components, thus reducing the overall solution footprint and saving valuable board space.

The device is also equipped with a 100% duty cycle low dropout mode, ensuring stable output voltage even when the input voltage is very close to the output voltage, which is particularly useful during battery discharge. Furthermore, it has a peak current limit of 1.2A, providing reliable protection against overcurrent conditions.

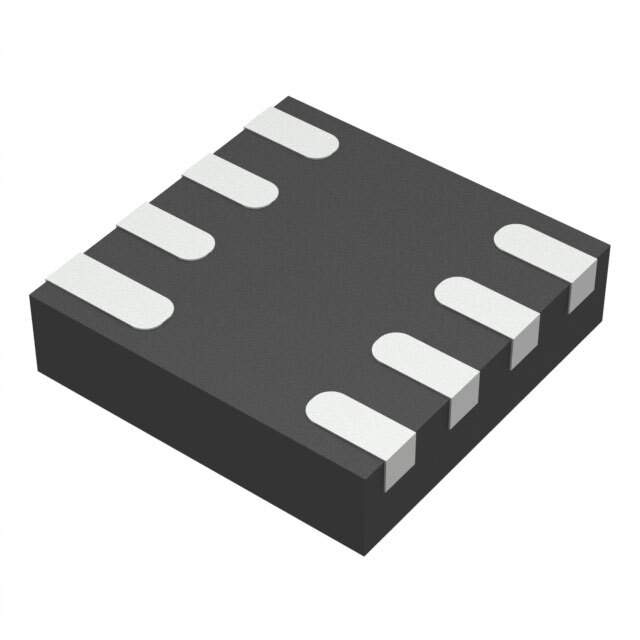

The MIC23150-4YMT TR comes in a compact 10-pin 2x2mm Thin MLF® package, which is ideal for space-constrained applications. It also features thermal shutdown and under-voltage lockout protections, enhancing the safety and reliability of the system it is integrated into.

Overall, the MIC23150-4YMT TR is a high-performance solution for designers looking to maximize power efficiency and minimize space in their portable and battery-powered applications. Its advanced features and compact design make it an excellent choice for modern electronic devices.
