Product Overview: MIC24420YML-TR from Microchip Technology

The MIC24420YML-TR is a high-efficiency, integrated switch, 4A synchronous buck regulator from Microchip Technology. This compact and powerful component is designed to meet the needs of space-constrained and power-sensitive applications, providing a reliable and efficient power supply solution. With its wide input voltage range and adjustable output, the MIC24420YML-TR is a versatile choice for a variety of electronic devices.

Key Features

• Input Voltage Range: The regulator operates over a wide input voltage range from 4.5V to 42V, making it suitable for use with various supply voltages.
• Output Current: It is capable of delivering up to 4A of continuous output current, ensuring sufficient power for demanding applications.
• High Efficiency: With its synchronous buck architecture, the MIC24420YML-TR offers high efficiency, which minimizes heat generation and improves system reliability.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.8V to 85% of the input voltage, providing design flexibility to match specific requirements.
• Thermal Management: The device includes thermal shutdown and current limit features to protect against over-temperature and over-current conditions.
• Frequency Synchronization: It supports frequency synchronization to reduce electromagnetic interference (EMI) in noise-sensitive applications.

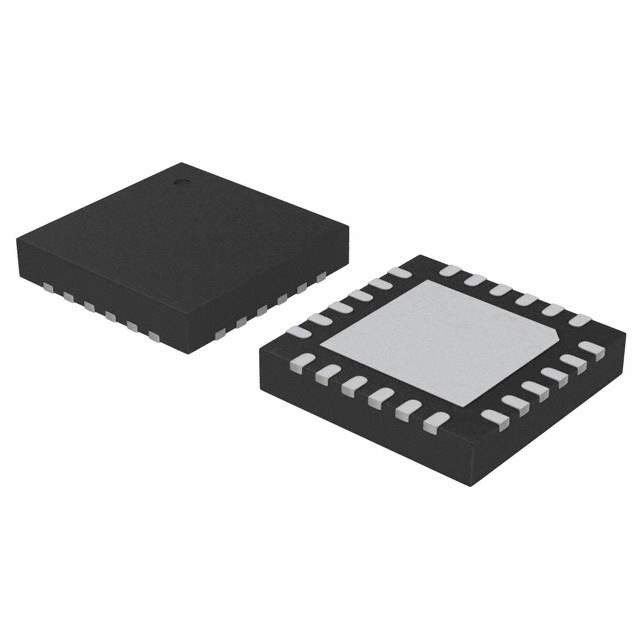

• Package: The MIC24420YML-TR comes in a compact 22-pin 4mm x 4mm QFN package, ideal for space-constrained environments.

Applications

This regulator is well-suited for a wide range of applications, including industrial systems, telecommunications, automotive products, and portable electronics. Its robust design and flexible features make it an excellent choice for powering FPGAs, DSPs, microcontrollers, and other integrated circuits that require a stable and efficient power supply.

Ordering Information

The product is available in tape and reel format, denoted by the suffix "-TR" in the part number, facilitating automated manufacturing processes. For sample requests, custom orders, or further technical information, customers can contact Microchip Technology or authorized distributors.
