Microchip Technology MIC2583R-JYQS Single Channel Hot Swap Controller

The MIC2583R-JYQS from Microchip Technology is a state-of-the-art single channel hot swap controller designed to provide a robust and efficient solution for managing power distribution in high-availability systems. This advanced controller ensures safe insertion and removal of circuit boards from live backplanes, minimizing the risk of damage to components and preventing glitches in the power supply.

The MIC2583R-JYQS is equipped with a range of features that enhance its performance and reliability. With its integrated charge pump, the controller can drive an external N-channel MOSFET, allowing for control of the inrush current during board insertion. This feature is crucial for preventing the initial surge of current that can cause system instability or damage.

Programmable current limiting is another key aspect of the MIC2583R-JYQS, which ensures that the user can set the maximum current threshold according to the specific requirements of their system. The controller also provides a circuit breaker function that trips when the current exceeds the programmed limit for a certain duration, offering additional protection against overcurrent conditions.

Additionally, the MIC2583R-JYQS supports an under-voltage lockout (UVLO) feature that prevents the system from operating at dangerously low voltages, which could otherwise lead to unpredictable behavior or damage. The controller also includes over-temperature protection, which shuts down the channel if the temperature exceeds a predefined threshold, ensuring the safety and longevity of the system.

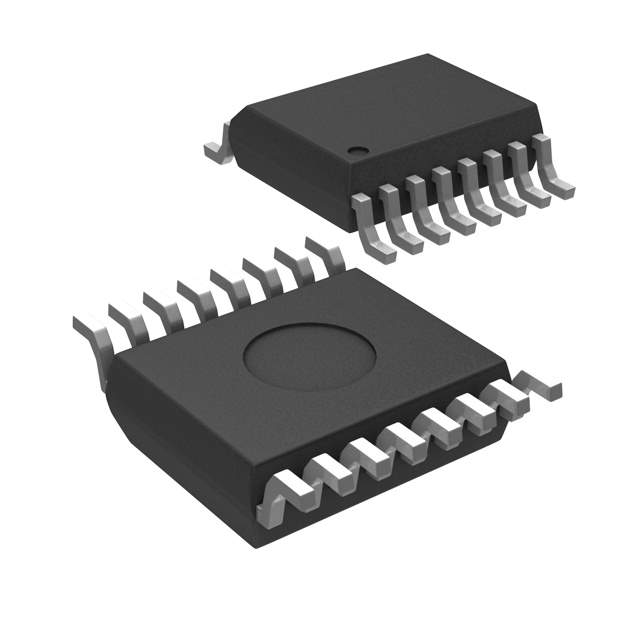

The device comes in a compact package and is designed for easy integration into a wide range of applications, including servers, storage systems, and telecommunications equipment. With its robust design and comprehensive suite of protection features, the MIC2583R-JYQS is an ideal choice for system designers looking for a reliable hot swap solution.
