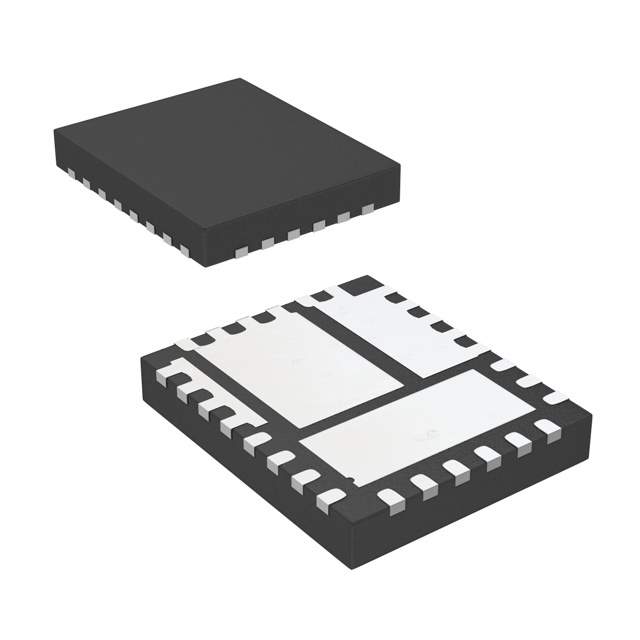

Microchip Technology MIC26603YJL-TR Power Module

The MIC26603YJL-TR is a high-efficiency, synchronous step-down power module from Microchip Technology, designed to deliver exceptional performance in a compact package. This power management integrated circuit (PMIC) is an ideal solution for a wide range of applications, including networking, telecommunications, and industrial systems, where space is at a premium and efficiency is critical.

Key Features:

• Input Voltage Range: The MIC26603YJL-TR operates over a wide input voltage range of 4.5V to 26.5V, making it versatile for various system voltages.
• Output Voltage: It provides an adjustable output voltage from 0.8V to 5.5V, allowing for flexibility in different design requirements.
• High Current Output: With the capability to deliver up to 6A of continuous output current, it can power a broad array of high-power devices.
• High Efficiency: The module's high efficiency of up to 95% minimizes power loss and heat generation, ensuring reliable operation even in thermally challenging environments.
• Integrated Inductor: The inclusion of an integrated inductor simplifies design and reduces external component count, which can lead to a reduction in both system cost and board space.
• Protection Features: It comes equipped with a suite of protection features, including over-temperature protection, under-voltage lockout, over-current protection, and short-circuit protection, enhancing the reliability and longevity of the end product.
• Compact Package: Encased in a 12mm x 12mm x 4mm QFN package, the MIC26603YJL-TR is designed for space-constrained applications.

Applications:

The versatility and robust feature set of the MIC26603YJL-TR make it suitable for a variety of applications, such as:

• Point-of-Load (POL) power supplies
• Distributed power systems
• FPGAs, DSPs, and microprocessor power supplies
• Network and telecom infrastructure
• Industrial equipment

Overall, the MIC26603YJL-TR from Microchip Technology is a powerful, efficient, and compact solution for modern power supply challenges, offering designers the performance and reliability needed for high-demand applications.
