Products specifications

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 26V
Nominal Output Voltage (Min/Fixed) 1.24V
Maximum Output Voltage 26V
Dropout Voltage-Max 0.6V @ 1.25A
Output Current 1.25A
Operating Supply Current 500μA to 70mA
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage 1.24 V to 26 V
Voltage - Dropout (Typical) 0.4V @ 1.25A
Mounting Through Hole
Case / Package TO-220-5
Win Source Part Number 058626-MIC2941ABT
Ultra Librarian 3D Model Ultra Librarian MIC2941ABT CAD Model

Description

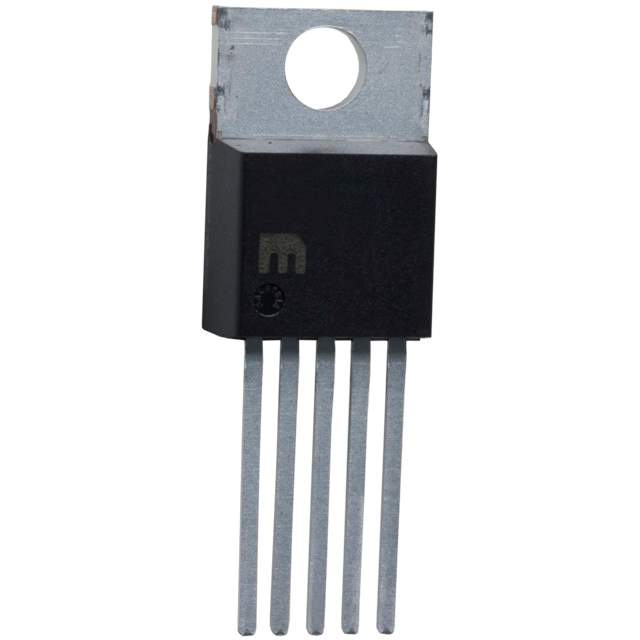

MIC2941ABT by Microchip Technology

The MIC2941ABT from Microchip Technology is a robust, high-current, low-dropout voltage regulator designed to provide a stable power supply for a wide range of applications. This regulator is capable of delivering up to 1.25A of continuous current with a low dropout voltage, making it an ideal choice for systems that require a reliable and efficient power source.

Constructed with advanced semiconductor technology, the MIC2941ABT features an adjustable output voltage that can be set from 1.24V up to 26V with the use of external resistors. This flexibility allows designers to tailor the output voltage to specific requirements, ensuring compatibility with various microcontrollers, sensors, and other electronic components.

The device is packaged in a convenient TO-220 package, known for its excellent thermal performance, which is crucial for maintaining stability and longevity under high-current conditions. The MIC2941ABT also includes built-in protection features such as thermal shutdown and current limiting, which safeguard the regulator and connected components from potential damage due to overheating or overcurrent situations.

One of the key advantages of the MIC2941ABT is its low dropout voltage, which ensures efficient operation even when the input voltage is very close to the output voltage. This characteristic is particularly beneficial in battery-powered applications where maximizing the usage of available power is crucial.

Additionally, the MIC2941ABT is equipped with a fast transient response. This feature allows the regulator to maintain a stable output voltage despite rapid changes in load, which is essential for powering sensitive digital circuits that may experience sudden shifts in power demand.

In summary, the MIC2941ABT from Microchip Technology is a versatile, high-performance voltage regulator that combines high current capability, low dropout voltage, adjustable output, and robust protection features. Its reliability and efficiency make it an excellent choice for designers looking to create stable and durable power supply circuits in their electronic projects.
