Product Overview: MIC29502WU-TR from Microchip Technology

The MIC29502WU-TR, manufactured by Microchip Technology, is a high-performance, adjustable output, low-dropout voltage regulator (LDO) capable of delivering up to 5A of output current. This regulator is designed to provide a stable and reliable power supply for a wide range of applications, including sensitive RF and analog circuitry, microprocessors, and digital systems.

Key Features

• High Output Current: Capable of delivering up to 5A, making it suitable for high-power applications.
• Adjustable Output Voltage: The output voltage can be adjusted from 1.24V to 26V via an external resistor divider, providing flexibility for various design requirements.
• Low Dropout Voltage: The MIC29502WU-TR offers a low dropout voltage, ensuring efficient operation even when the input-to-output differential is small.
• Thermal and Overcurrent Protection: Built-in thermal shutdown and current limit features protect against excessive temperature and current, enhancing the reliability and longevity of the device.
• Stable with Ceramic Output Capacitors: Compatible with low ESR ceramic capacitors, which can improve transient response and minimize output noise.
• Wide Input Voltage Range: Operates over an input voltage range of 2.5V to 26V, accommodating a variety of power sources.

Applications

The MIC29502WU-TR is ideal for use in a broad spectrum of applications, including:

• Telecommunications
• Networking equipment
• Industrial systems
• Automotive electronics
• High-power LED lighting
• Post-regulation for switching power supplies

Package and Availability

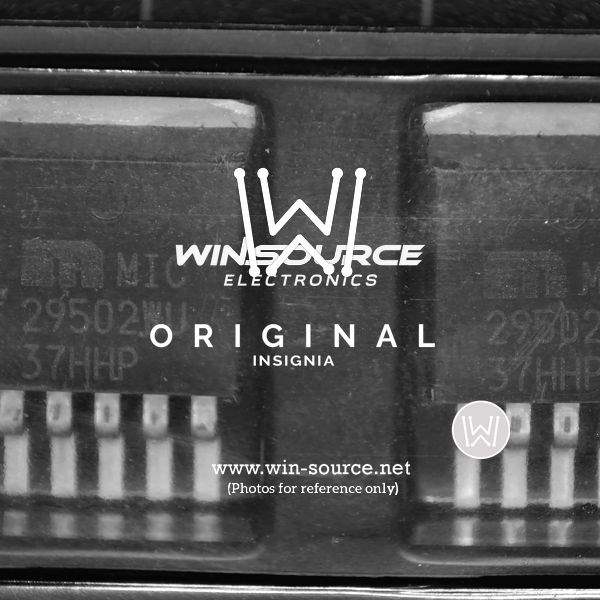

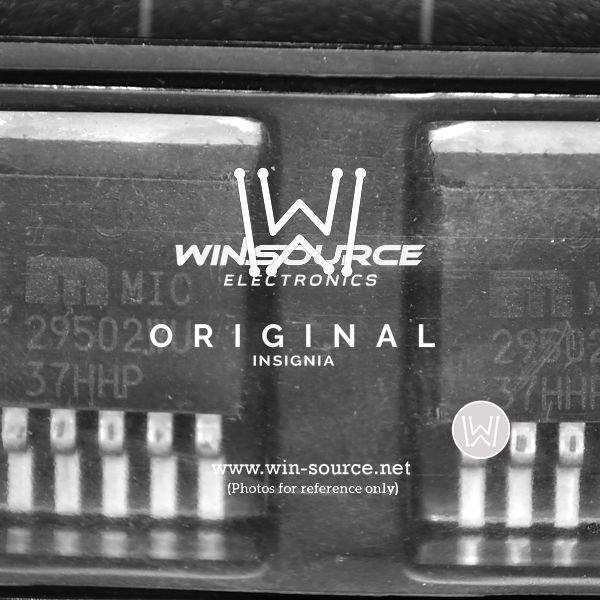

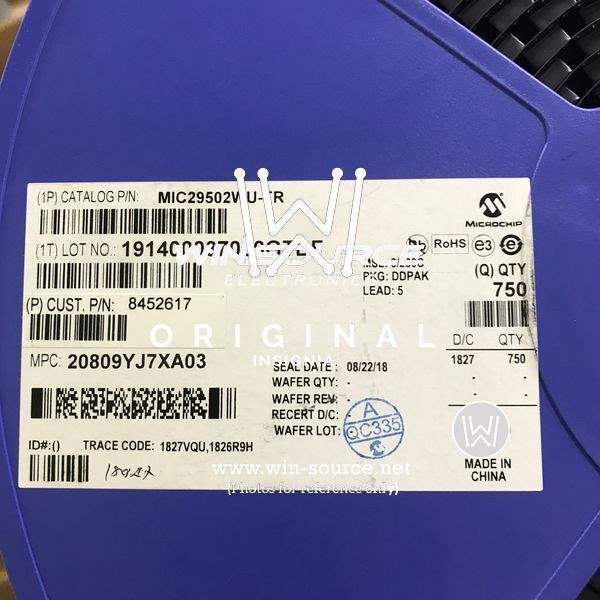

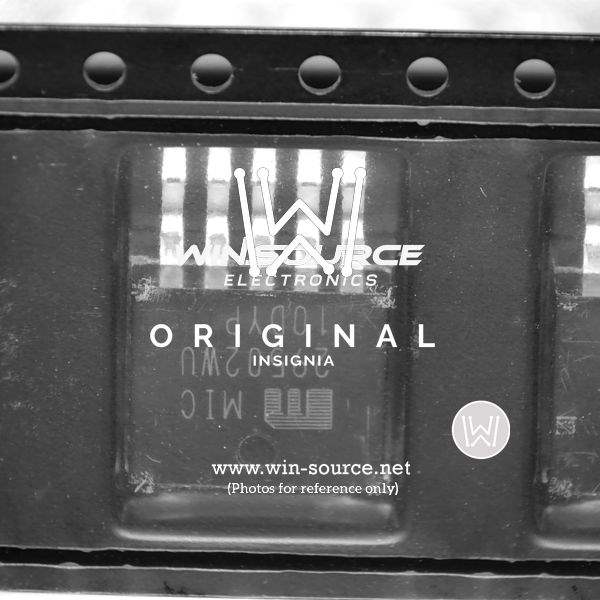

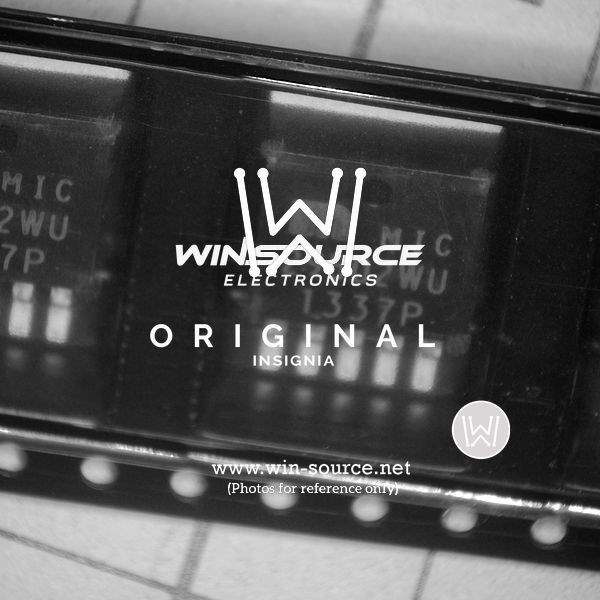

This LDO is available in a thermally enhanced, 5-lead TO-263 (D2PAK) package, which aids in heat dissipation, crucial for maintaining performance at high output currents. The suffix 'TR' indicates that the product is offered in tape and reel packaging, which is suitable for automated assembly processes.

For engineers and designers looking for a robust, high-current power solution, the MIC29502WU-TR from Microchip Technology offers an excellent combination of performance, flexibility, and protection features to meet the demands of various high-power applications.
