Microchip Technology MIC33030-JYHJ-TR

The MIC33030-JYHJ-TR is a high-efficiency, synchronous step-down regulator module from Microchip Technology. This compact and integrated power solution is designed to provide a reliable and robust power supply for a wide range of applications. With its integrated inductor and high switching frequency, the MIC33030-JYHJ-TR offers a space-saving design, making it ideal for space-constrained applications.

This power module is capable of delivering up to 3A of continuous output current and supports an input voltage range of 2.7V to 5.5V, which makes it versatile for various electronic devices operating on standard battery technologies. The output voltage is adjustable from 0.8V to 3.6V, allowing designers to tailor the voltage to the specific needs of their application.

One of the key features of the MIC33030-JYHJ-TR is its high efficiency, which can reach up to 93%. This helps in reducing power losses and improving battery life in portable devices. Furthermore, its 4MHz switching frequency enables the use of small external components, thus reducing the overall footprint and bill of materials cost.

The module incorporates a range of protection features to ensure the safety and longevity of the end application. These include under-voltage lockout (UVLO), over-temperature protection (OTP), and over-current protection (OCP). Additionally, the device features a 100% duty cycle low-dropout mode, which maintains the output voltage during conditions when the input voltage is very close to the output voltage, ensuring continuous operation.

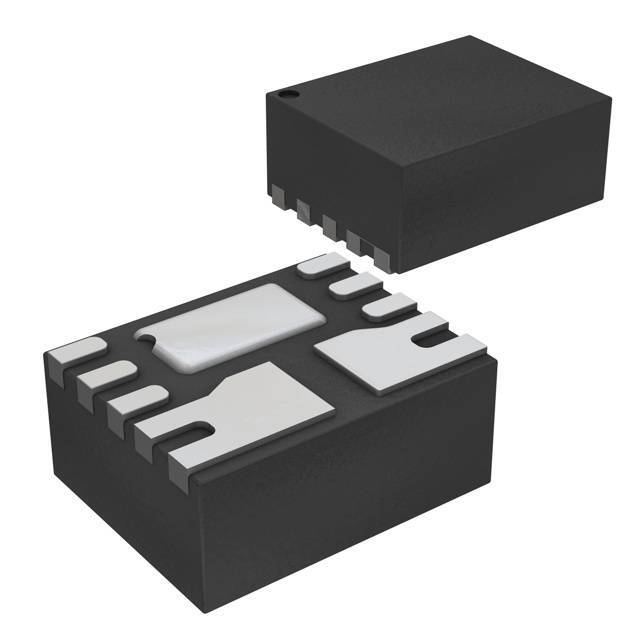

The MIC33030-JYHJ-TR comes in a 20-pin 4mm x 4mm QFN package with a junction operating temperature range of -40°C to +125°C. Its RoHS compliance and lead (Pb) free finishing make it suitable for eco-friendly applications and regulations. The device is well-suited for powering FPGAs, DSPs, microprocessors, and other sensitive electronic loads in applications ranging from industrial controls to portable devices.

With its combination of high efficiency, compact design, and robust protection features, the MIC33030-JYHJ-TR from Microchip Technology stands out as a reliable power management solution for designers looking to optimize the performance and size of their products.
