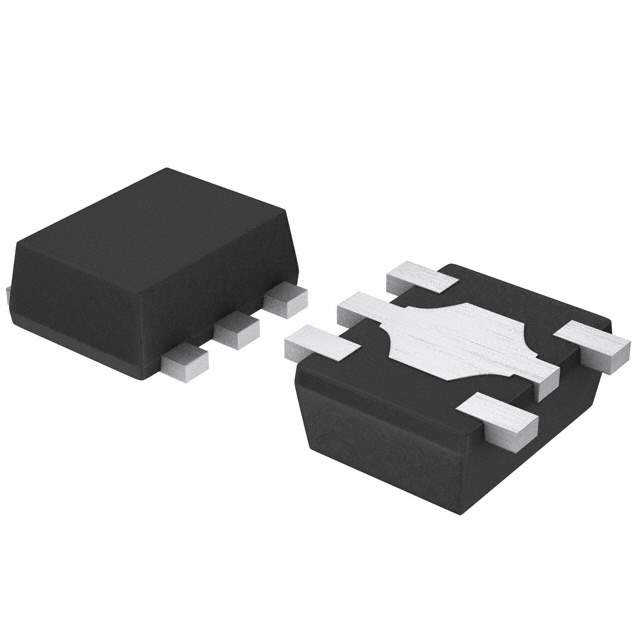

The BH15LB1WHFV is a low-dropout (LDO) linear voltage regulator manufactured by Rohm Semiconductor. This device is designed to provide a stable and regulated output voltage from a higher input voltage, making it ideal for various portable and battery-powered applications. The BH15LB1WHFV is part of Rohm's extensive line of power management ICs (PMICs), known for their efficiency, reliability, and compact size.

Applications:

• Smartphones: Powering core logic and peripheral components.
• Tablets: Providing regulated voltage for the processor, display, and memory.
• Wearable devices: Regulating power in smartwatches, fitness trackers, and other compact devices.
• Portable media players: Ensuring stable voltage for audio and video processing.
• Wireless communication modules: Powering Wi-Fi, Bluetooth, and other wireless chips.

Features:

• Low Dropout Voltage: Allows the regulator to operate with a very small difference between the input and output voltage, maximizing efficiency.
• Low Quiescent Current: Minimizes power consumption when the regulator is in standby mode, extending battery life.
• Overcurrent Protection: Protects the regulator and the load from damage due to excessive current draw.
• Thermal Shutdown Protection: Shuts down the regulator when the junction temperature exceeds a safe limit, preventing thermal damage.
• Stable with Ceramic Capacitors: Designed to operate stably with ceramic output capacitors, which have low ESR (Equivalent Series Resistance).

Benefits:

• Extended Battery Life: Low dropout voltage and low quiescent current maximize battery life in portable applications.
• Enhanced Reliability: Overcurrent and thermal shutdown protection prevent damage to the regulator and the load.
• Simplified Design: Stable operation with ceramic capacitors simplifies circuit design and reduces component count.
• Compact Size: Small package size allows for integration into space-constrained applications.
• Stable Output Voltage: Provides a stable and accurate output voltage, ensuring proper operation of downstream components.

Additional Details:

The BH15LB1WHFV typically requires a few external components, such as input and output capacitors, to ensure stable operation. The specific values of these components may vary depending on the application and operating conditions. The regulator's output voltage is typically fixed, but some versions may offer adjustable output voltage options. Refer to the datasheet for detailed specifications and application guidelines.

The device is designed to operate within a specific temperature range, and exceeding this range may affect its performance and reliability. Careful attention should be paid to thermal management to ensure that the regulator operates within its specified temperature limits. Considerations should be made for thermal vias and heat sinks depending on the application.
