Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Microchip Technology
Main Purpose Power Management, Half H-Bridge Driver (External FET)
Embedded No
Utilized IC / Part MIC4604
Supplied Contents Board(s)
Win Source Part Number 788635-MIC4604YMT-EV
Popularity Medium
Supply and Demand Status Limited
Family Name MIC4604
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MIC4604YMT-EV CAD Model

Description

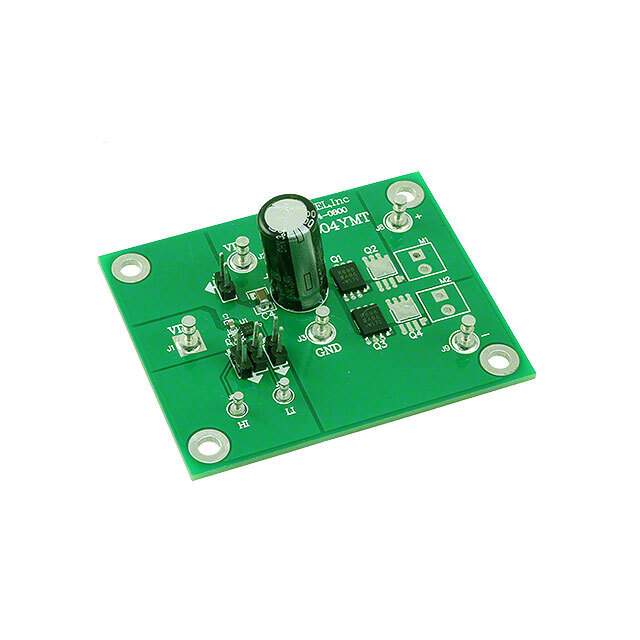

Microchip Technology's MIC4604YMT-EV Half-Bridge MOSFET Driver

The MIC4604YMT-EV is a highly robust and efficient half-bridge MOSFET driver designed by Microchip Technology, a leader in smart, connected, and secure embedded control solutions. This driver is specifically engineered to address the needs of high-performance power conversion and motor control applications.

Key Features:

  • Adaptive Dead Time Management: The MIC4604YMT-EV integrates an adaptive dead time circuitry that ensures optimal timing between high-side and low-side MOSFETs to minimize power losses and prevent shoot-through, enhancing the efficiency and reliability of the system.
  • Anti-Shoot-Through Protection: It features a proprietary anti-shoot-through technology for additional safety, which prevents simultaneous conduction of both the high-side and low-side MOSFETs.
  • High-Speed Operation: With a fast 35ns propagation delay and a 30ns rise/fall time at a 1nF load, this driver is capable of high-speed operation, making it suitable for high-frequency power conversion and motor control.
  • Wide Operating Voltage Range: The device operates over a wide supply voltage range from 4.5V to 18V, accommodating various power systems and ensuring flexibility in design.
  • Under-Voltage Lockout (UVLO): The MIC4604YMT-EV is equipped with UVLO protection on both the high-side and low-side to ensure the MOSFETs operate only when the voltage is within an acceptable range.

Applications:

The MIC4604YMT-EV is suitable for a diverse range of applications, including:

  • DC/DC converters
  • Class D audio amplifiers
  • Brushed and brushless DC motor drivers
  • Power supplies for servers, telecom, and industrial systems

With its advanced features and Microchip's commitment to quality, the MIC4604YMT-EV is an excellent choice for designers looking to improve the performance and efficiency of their power conversion and motor control systems. Its robust design ensures reliability in the most demanding applications, while its ease of use and integration make it a go-to solution for a wide array of power management challenges.
