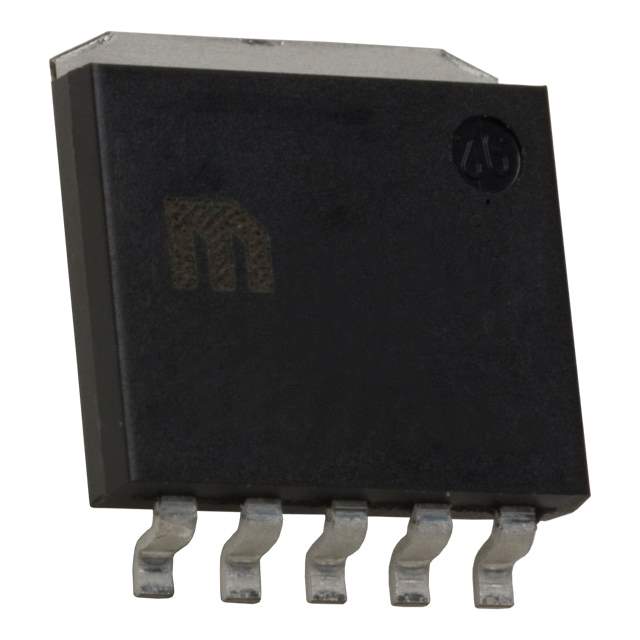

Microchip Technology's MIC49150WR LDO Voltage Regulator

The MIC49150WR from Microchip Technology is a high-performance, low-dropout (LDO) voltage regulator designed to deliver a continuous output current of up to 1.5A with a minimal voltage drop. This robust regulator offers exceptional accuracy, low noise, and high ripple rejection, making it an ideal choice for sensitive applications requiring a stable power supply.

Key Features

• High Output Current: Capable of delivering up to 1.5A, this LDO is suitable for powering a wide range of ICs and embedded systems.
• Low Dropout Voltage: The MIC49150WR maintains regulation with minimal input-to-output differential, enhancing efficiency and allowing operation under tighter input voltage constraints.
• Adjustable Output: Users can set the output voltage from 1.24V to 5.5V using external resistors, providing flexibility for various design requirements.
• Stable with Ceramic Capacitors: The LDO is stable with ceramic output capacitors, which are smaller, more reliable, and have lower equivalent series resistance (ESR) than other capacitor types.
• Fast Transient Response: The device responds quickly to changes in load, ensuring a stable output voltage even during rapid load swings.
• Thermal and Overcurrent Protection: Built-in safety features protect the device from overheating and excessive current draw, enhancing the longevity and reliability of both the regulator and the system it powers.

Applications

The MIC49150WR is versatile and can be used in a variety of applications, including:

• High-performance DSPs and FPGAs
• Networking and telecommunication equipment
• Server and storage platforms
• Industrial and medical equipment
• Automotive electronics

With its combination of performance, flexibility, and protection features, the MIC49150WR is a reliable choice for designers seeking a high-quality power management solution. Its small footprint and compatibility with surface-mount technology also make it suitable for compact, space-constrained designs.

Overall, the MIC49150WR LDO voltage regulator from Microchip Technology is a testament to the company's commitment to providing advanced power management solutions that meet the needs of modern electronic systems.
