The MIC94061YMT-TR is a high-side load switch designed by Microchip Technology, a leading provider of microcontroller, mixed-signal, analog, and Flash-IP solutions. This component is part of Microchip's extensive range of power management products and offers a compact, efficient solution for power distribution and management in electronic devices.

Key Features

• Low On-Resistance: The MIC94061YMT-TR features a low on-resistance (RON) that minimizes power loss and improves efficiency, making it ideal for battery-powered applications.
• Input Voltage Range: It operates over a wide input voltage range from 1.8V to 5.5V, accommodating various power sources and making it versatile for multiple applications.
• Current Limiting: The device includes a current limiting feature that protects the load and the switch from over-current conditions, enhancing system reliability.
• Thermal Shutdown: Thermal shutdown protection is integrated into the MIC94061YMT-TR, which prevents damage from overheating by turning off the switch if the junction temperature exceeds safe limits.
• Fast Switching: The load switch offers fast turn-on and turn-off times, which is critical for applications that require quick power sequencing or modulation.

Applications

The MIC94061YMT-TR is suitable for a variety of applications, including but not limited to:

• Smartphones and Tablets
• Portable Media Players
• Wearable Technology
• GPS Devices
• Wireless Modules
• Power Management for Peripheral Ports

Package and Availability

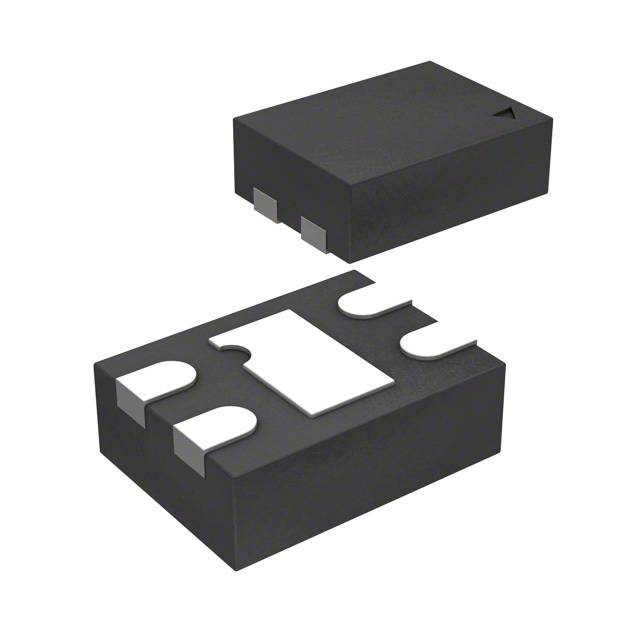

This load switch is available in a compact 6-pin 1.6mm x 1.6mm Thin DFN package, which is ideal for space-constrained applications. The MIC94061YMT-TR is provided in tape and reel packaging, denoted by the suffix 'TR', which facilitates automated assembly processes for high-volume production.

Quality and Reliability

Microchip Technology is known for its commitment to quality and reliability, and the MIC94061YMT-TR is no exception. It is designed to meet the stringent requirements of the industrial, automotive, and consumer electronics markets, ensuring stable and consistent performance across a range of environmental conditions.
