Microchip Technology's PIC16C716/JW Microcontroller

The PIC16C716/JW from Microchip Technology is a high-performance, CMOS, fully-static, 8-bit microcontroller packed with a variety of features that make it a versatile choice for a wide range of applications. This microcontroller is designed to provide a perfect balance between power and flexibility, with a focus on ease of use and cost-effectiveness.

At the heart of the PIC16C716/JW is a powerful RISC architecture that allows the execution of most instructions in a single cycle, enabling high-speed processing and increased efficiency. The device comes with 3.5KB of on-chip program memory and 128 bytes of RAM, providing ample space for code and data storage for small to medium complexity applications.

One of the standout features of the PIC16C716/JW is its integrated analog-to-digital converter (ADC) with 8 channels and 8-bit resolution, which simplifies the process of reading analog signals. This is particularly useful for sensor interfacing and real-time data analysis. Additionally, the microcontroller offers a synchronous serial port for SPI and I2C communication, making it easy to connect with other ICs and peripherals.

The device also includes a range of timers, including an 8-bit timer and a 16-bit timer, which can be used for event counting, pulse generation, and time-based operations. The PIC16C716/JW supports interrupt handling with an easy-to-use interrupt system that enhances its real-time performance.

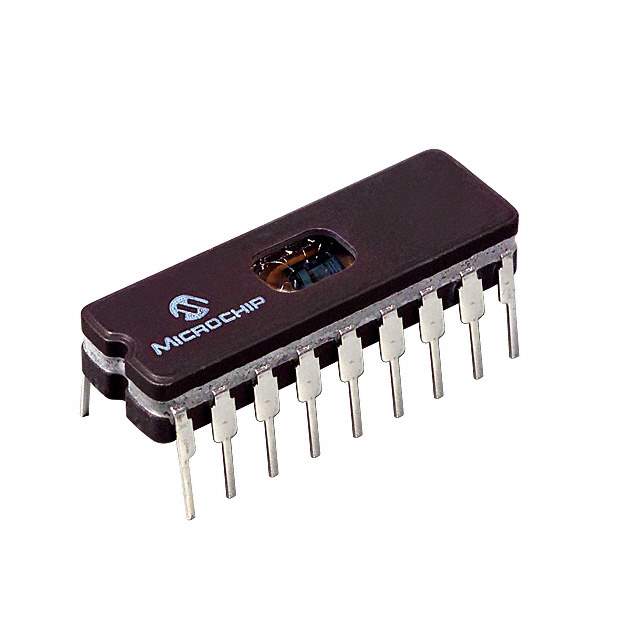

For designers concerned with power consumption, the PIC16C716/JW has power-saving features such as a power-on reset, programmable brown-out reset, and an on-chip voltage reference that contribute to reliable operation under varying voltage conditions. The microcontroller is available in a windowed ceramic package (JW) that allows for erasure and reprogramming with UV light, facilitating rapid prototyping and iterative development.

With its rich set of peripherals, low power consumption, and robust instruction set, the PIC16C716/JW from Microchip Technology is an ideal choice for applications in automation, consumer electronics, automotive systems, and more. Its flexibility and reliability make it a go-to microcontroller for engineers and hobbyists alike who require a compact, yet powerful, solution.
