Microchip Technology's PIC16F1828-E/GZ Microcontroller

The PIC16F1828-E/GZ from Microchip Technology is a high-performance, 8-bit microcontroller packed with a multitude of features designed to support a wide range of applications. This versatile MCU is part of the PIC16F family, known for its low power consumption, robust architecture, and flexibility, making it an ideal choice for embedded systems in automotive, industrial, appliances, and consumer electronics.

The PIC16F1828-E/GZ boasts an enhanced Mid-range core with 14-bit instruction set that provides a linear memory address space of up to 8K words and up to 512 bytes of RAM. This microcontroller operates at a voltage range of 1.8V to 5.5V, allowing it to perform efficiently in low-power and varying voltage scenarios. Its high level of integration includes an internal oscillator, saving on external component count and board space.

Key features of the PIC16F1828-E/GZ include:

• Flash Memory: 3.5KB of on-board programmable flash memory, which is ideal for storing firmware and parameters that may need to be updated in the field.
• EEPROM: 256 bytes of data EEPROM for non-volatile storage of user data.
• I/O Pins: 18 versatile I/O pins that can be configured for various interface requirements, including digital input/output, analog inputs, or specialized functions like PWM outputs.
• Timers: Multiple timers including a 16-bit timer, and several 8-bit timers, aiding in precise event management and PWM generation.
• Communication Peripherals: Integrated EUSART and MSSP modules for serial communication, supporting protocols such as I²C, SPI, and RS-232.
• Analog Features: 10-bit Analog-to-Digital Converter (ADC) with up to 12 channels, Comparator module with two comparators, and a Fixed Voltage Reference (FVR) feature for accurate analog signal processing.
• Enhanced Safety Features: Watchdog Timer (WDT), Brown-out Reset (BOR), and Extended Watchdog Timer (EWDT) to ensure reliable operation under varying conditions.
• Customizable: Configurable Logic Cell (CLC) for implementing custom logic and reducing the need for external components.

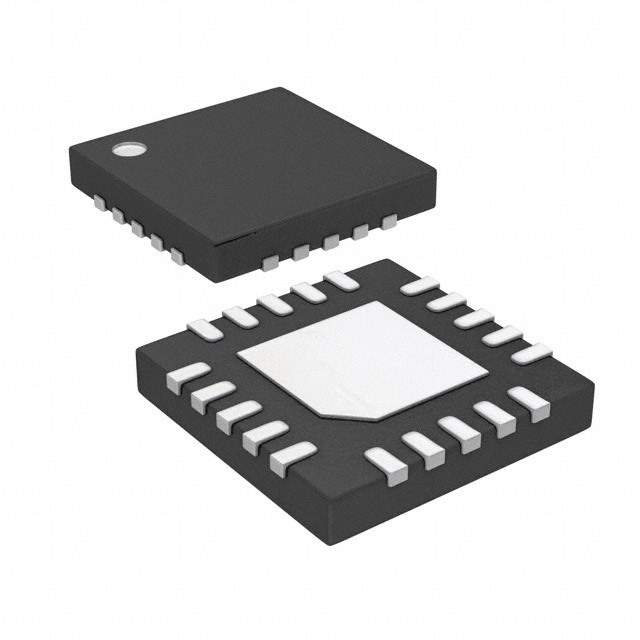

With its extensive set of peripherals and low power operation, the PIC16F1828-E/GZ microcontroller is a highly capable solution for designers looking to create sophisticated and power-efficient applications. Its small-footprint 20-pin VQFN package also makes it suitable for space-constrained applications.

Microchip provides comprehensive development tools and resources, including the MPLAB® X Integrated Development Environment (IDE) and MPLAB Code Configurator, to streamline the development process for the PIC16F1828-E/GZ, ensuring a smooth path from concept to production.
