Products specifications

Category Integrated Circuits (ICs) - Interface - Specialized
Mfr Microchip Technology
Series -
Package Tray
Product Status Active
Applications I/O Controller
Interface -
Voltage - Supply 3.3V

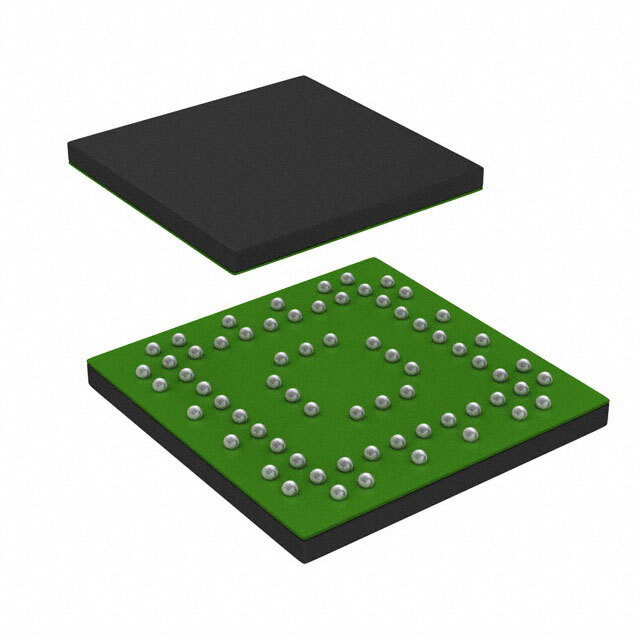

Package / Case 64-WFBGA
Supplier Device Package 64-WFBGA (6x6)
Mounting Type Surface Mount
Base Product Number SCH3221
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.90.6800
Win Source Part Number 1370767-SCH3221-7U
Ultra Librarian 3D Model Ultra Librarian SCH3221-7U CAD Model

Description

The SCH3221-7U is a versatile and powerful Super I/O controller from the renowned manufacturer, Microchip Technology. This advanced chip is designed to handle the input/output operations in embedded systems, particularly in industrial and PC-based applications. It is the perfect solution for designers looking for a reliable and high-performance I/O controller with a small footprint.

Key Features

  • Multi-Function Integration: The SCH3221-7U integrates legacy functions such as keyboard controller (KBC), mouse controller, UARTs, parallel port, and floppy disk controller, significantly reducing the number of components required on a motherboard.
  • Enhanced Power Management: With advanced power management features, this Super I/O controller supports various low-power modes and wake-up events, which is crucial for energy-efficient system designs.
  • Flexible Interface: It offers a variety of interfaces, including LPC (Low Pin Count) and enhanced Serial IRQ interface, which are compatible with most CPUs and chipsets in the market.
  • Robust Serial Ports: The device includes two high-speed serial communication ports (UARTs) with 16-byte FIFOs, ensuring smooth and efficient data transmission.
  • GPIO Support: General-purpose input/output (GPIO) pins are available for flexible system configuration and customization, allowing designers to tailor the device to specific application needs.

Applications

The SCH3221-7U is ideal for a wide range of applications, including:

  • Industrial PCs and Automation Systems
  • Embedded Systems
  • Point of Sale (POS) Terminals
  • Networking Equipment
  • Server Platforms

Quality and Reliability

As with all Microchip products, the SCH3221-7U is built to the highest standards of quality and reliability. It undergoes rigorous testing and validation to ensure that it meets the stringent requirements of industrial and commercial applications. When you choose the SCH3221-7U, you are selecting a product that is backed by Microchip Technology's commitment to excellence.
