Microchip Technology USB3316B-CP-TR USB 2.0 Transceiver

The USB3316B-CP-TR from Microchip Technology is a highly integrated USB 2.0 Hi-Speed Transceiver (PHY) chip designed to offer a versatile and power-efficient solution for adding USB functionality to a wide range of embedded systems. This transceiver is part of Microchip's extensive USB portfolio and is ideal for mobile, battery-powered, and space-constrained applications due to its small footprint and low power consumption.

Key Features

• USB-IF Hi-Speed Certified: The chip is USB 2.0 Hi-Speed compliant, ensuring interoperability with existing USB systems and devices.
• Ultra Low Power: It features an ultra low power design, with a typical power consumption of 31 mW for Hi-Speed operation and 98 µW in suspend mode, making it suitable for power-sensitive applications.

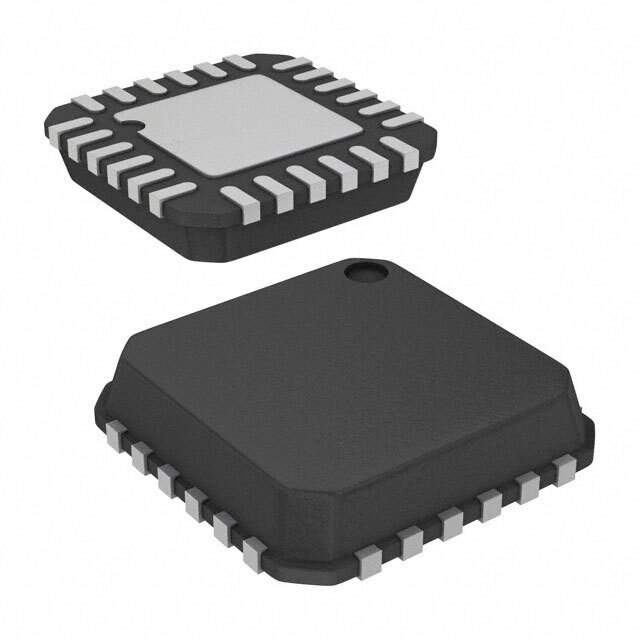

• Small Package: The USB3316B-CP-TR comes in a compact 24-pin QFN package, measuring just 4 x 4 mm, which is perfect for portable devices where space is at a premium.
• Flexible Voltage Operation: It operates with a 1.8V core voltage and has a 1.8V to 3.3V IO voltage range, providing design flexibility for various system architectures.
• Integrated Termination Resistors: The device includes integrated termination resistors and pull-down resistors on the USB data lines, which helps to reduce external component count and system costs.
• UTMI+ Interface: Features a UTMI+ Level 3 interface for easy integration with USB controllers.
• Link Power Management (LPM) Support: Supports LPM for improved power savings, which is particularly important for battery-powered devices.

Applications

The USB3316B-CP-TR is designed to be used in a variety of applications that require USB connectivity. Its small size and power efficiency make it an excellent choice for:

• Smartphones and Tablets
• Portable Media Players
• GPS Devices
• Digital Cameras
• Wearable Technology
• Handheld Gaming Consoles
• Industrial Controllers

Overall, the USB3316B-CP-TR is a robust and reliable USB transceiver that provides designers with a cost-effective and space-saving solution for integrating USB 2.0 Hi-Speed capabilities into their products.
