Microchip Technology's USB3316C-CP-TR High-Speed USB Transceiver

The USB3316C-CP-TR is a cutting-edge USB 2.0 High-Speed Transceiver designed by Microchip Technology, a leader in smart, connected, and secure embedded control solutions. This transceiver is a highly integrated solution that supports the full range of USB speeds, making it an ideal choice for a variety of applications, including mobile phones, digital cameras, printers, scanners, and personal media players.

Key Features

• USB 2.0 Compliance: The USB3316C-CP-TR is fully compliant with the USB 2.0 specification, ensuring seamless operation with devices operating at high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps).
• UTMI+ Interface: Equipped with a UTMI+ Level 3 interface, this transceiver offers a flexible connection to USB controllers, thereby simplifying designs and reducing system complexity.
• Low Power Consumption: Designed for power-sensitive applications, the device features low power consumption with an option for a 1.8V or 3.3V voltage supply, making it suitable for battery-powered devices.

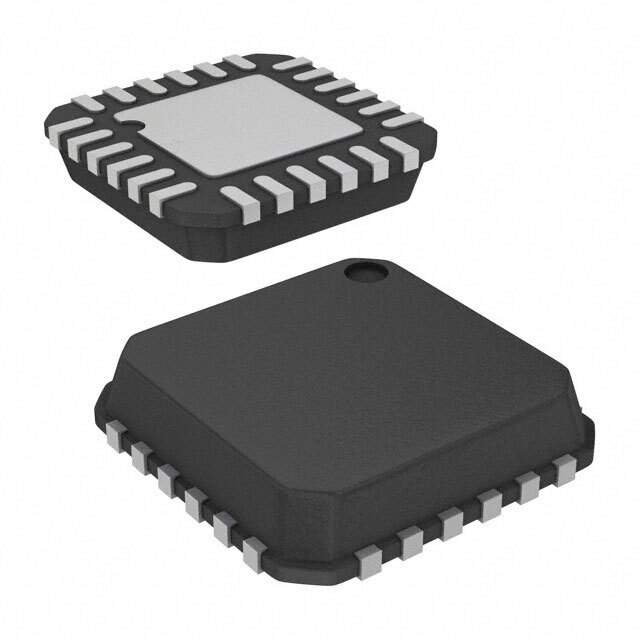

• Small Form Factor: The USB3316C-CP-TR comes in a compact 24-QFN (4x4 mm) package, which is perfect for space-constrained designs.
• Integrated ESD Protection: With built-in ESD protection, this transceiver is robust and resilient against electrostatic discharge events, enhancing the durability of the end product.

Applications

The versatility of the USB3316C-CP-TR allows it to be used in a diverse range of applications, including but not limited to:

• Portable electronics
• Smartphones and tablets
• GPS devices
• Media players
• Networking equipment

Quality and Reliability

Microchip Technology is known for its commitment to quality, and the USB3316C-CP-TR is no exception. It is manufactured to the highest standards, ensuring reliability and performance in even the most demanding applications. The device is also available in tape and reel packaging (TR suffix), facilitating efficient assembly for high-volume production.

With its comprehensive feature set and Microchip's renowned support, the USB3316C-CP-TR is an excellent choice for designers looking to integrate USB connectivity with minimal design overhead and maximum performance.
