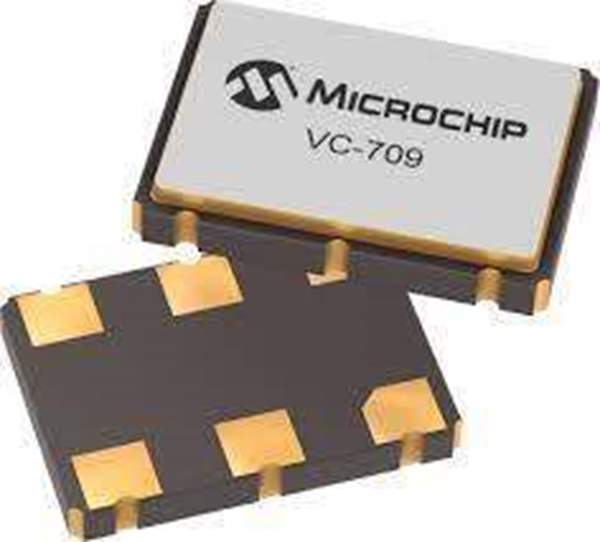

VC-709-ECE-KAAN-156M250000 Microchip Technology
Same model may have multiple batches, images only for reference.

VC-709-ECE-KAAN-156M250000

Part No VC-709-ECE-KAAN-156M250000
Manufacturer Microchip Technology
Catalog Oscillators
Description LOW POWER DIFFERENTIAL XO +3.3 V
Datasheet
VC-709-ECE-KAAN-156M250000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306384-VC-709-ECE-KAAN-156M250000
Category Crystals, Oscillators, Resonators Oscillators
Mfr Microchip Technology
Packaging Tape & Reel (TR)
Part Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 156.25 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 3.3V
Ultra Librarian 3D Model Ultra Librarian VC-709-ECE-KAAN-156M250000 CAD Model

Description

  • Ultra Low Jitter Performance, 3rd OT or Fundamental Crystal Design
  • 13.500-220.0000MHz Output Frequencies
  • Low Power
  • 400ps max Rise and Fall Time
  • Excellent Power Supply Rejection Ratio
  • Enable/Disable
  • 3.3 or 2.5V operation
  • -10/70°C or -40/85°C Operation
  • Hermetically Sealed 7.0x5.0 mm Ceramic Package
  • Product is compliant to RoHS directive and fully compatible with lead free assembly
